NCS-5501-SYS= Technical Specifications

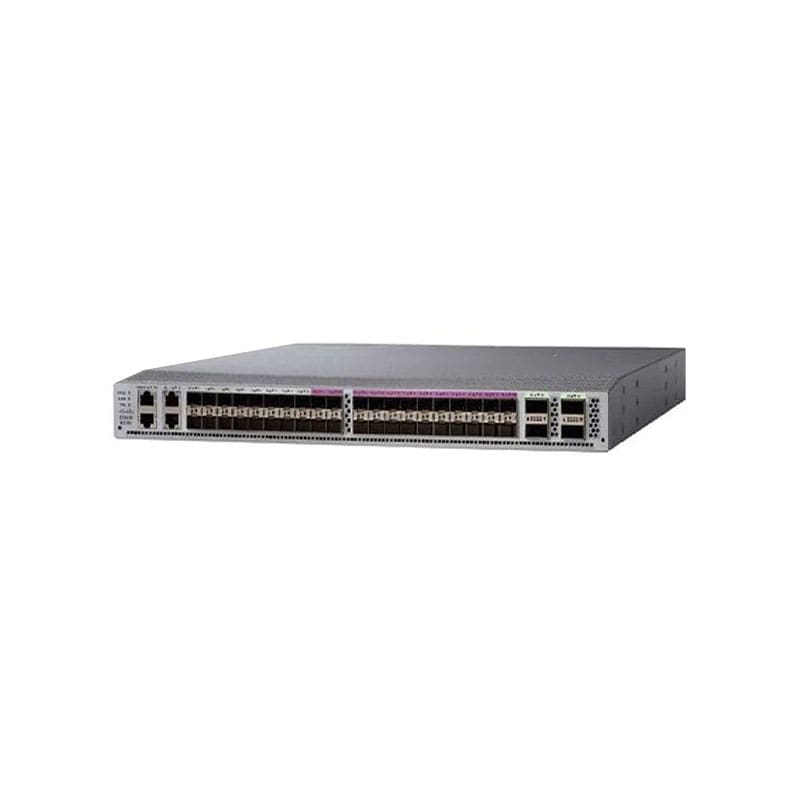

Cisco Network Convergence System 5501 Base Expansion Module
Brand: Cisco
Product Line: Cisco Network Convergence System
Model: 5501 Base
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Form Factor: Rack-mountable
Product Type: Expansion module
Connectivity
Interface Provided: 24 x 10Gb Ethernet via Breakout – SFP (mini-GBIC), 48 x 1Gb Ethernet/10Gb Ethernet – SFP (mini-GBIC), 6 x 40Gb Ethernet/100Gb Ethernet: QSFP
Power
Hot-Plug: Hot-plug
Power Provided: 300 watt
Redundant Power Supply: Yes
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Dimensions & Weight
Height: 1.7 inch
Weight: 23.5 lbs
Width: 17.4 inch
Depth: 21.7 inch
Physical Characteristics
Color Category: Gray
