N9K-C9396TX-B18Q Technical Specifications

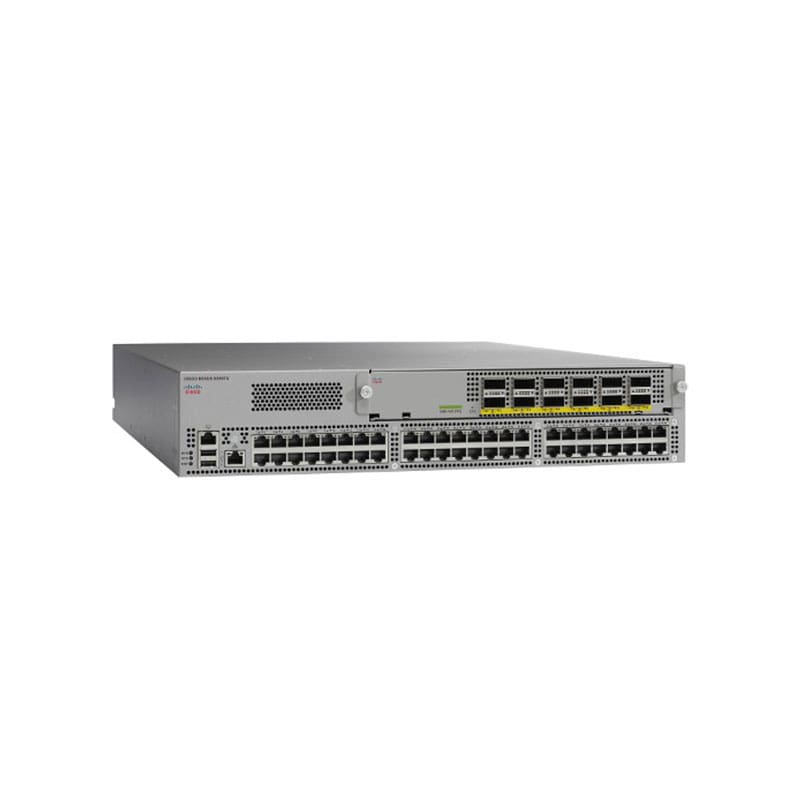

Cisco Systems 2 Nexus 9396TX with 8 QSFP-40G-SR-BD
Manufacturer Part Number: N9K-C9396TX-B18Q
Product Type: Layer 3 Switch
Manageable: Yes
Ethernet Technology: 10 Gigabit Ethernet, 40 Gigabit Ethernet
Number of Total Expansion Slots: 12
Product Family: Nexus 9300
Stack Port: No
Media Type Supported: Twisted Pair, Optical Fiber
Total Number of Network Ports: 48
Redundant Power Supply Supported: Yes
Expansion Slot Type: QSFP+
Form Factor: Rack-mountable
Power Source: Power Supply
Layer Supported: 3
Environmentally Friendly: Yes
Compatible Rack Unit: 2U
Modular: No
Port / Expansion Slot Details: 48 x 10 Gigabit Ethernet Network, 12 x 40 Gigabit Ethernet Expansion Slot
Height: 3.5″
Width: 22.5″
Depth: 17.5″
Product Series: 9300
Product Model: 9396TX
Network Technology: 10GBase-T, 40GBase-X
Product Line: Nexus
