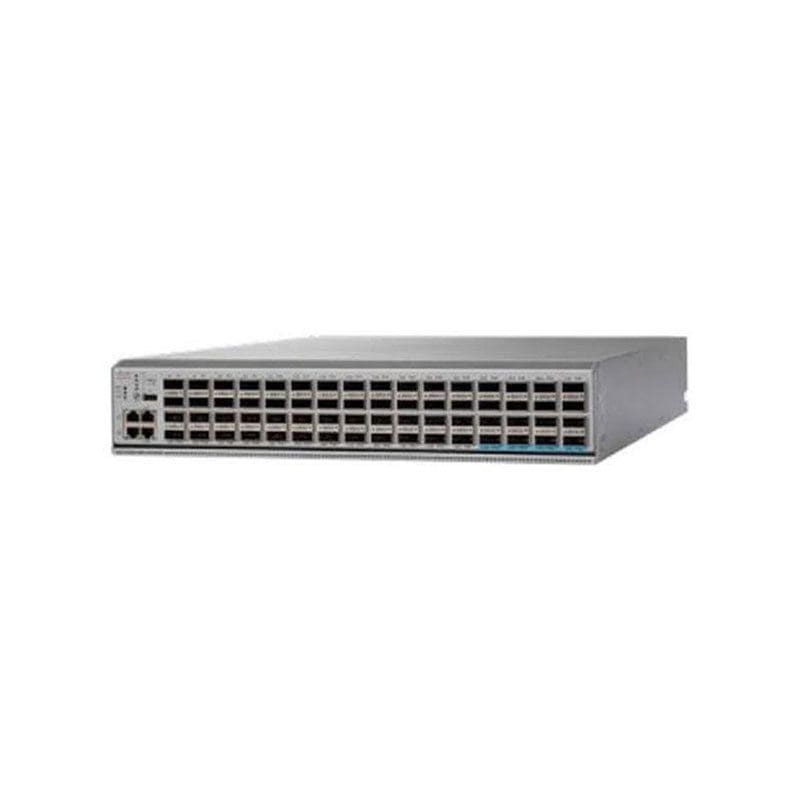

N9K-C92304QC Technical Specifications
Nexus 9200 with 56p 40G QSFP+ and 8p 100G QSFP28
Interface Provided
Connector Type : QSFP+ (breakout compatible)
Qty : 56
Type : 40Gbit LAN
Connector Type : QSFP28
Qty : 8
Type : 100Gbit LAN
Connector Type : RJ-45
Qty : 3
Type : Management
Qty : 1
Type : USB
Type : Serial (RS-232)
Networking
Advanced Switching : Layer 3
Features : Access Control List (ACL) support, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Port exhaust, Virtual Routing and Forwarding (VRF), VLAN support, VXLAN tunnel endpoints (VTEP) support
Form Factor : Desktop, Rack-mountable
MAC Address Table Size : 96K entries
Manageable : Yes
Ports Qty : 56
Routing Protocol : BGP, ECMP, EIGRP, HSRP, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2
Subcategory : Network hubs and switches
Subtype : 40 Gigabit Ethernet
Type : Switch
