N7K-F312FQ-25++= Technical Specifications

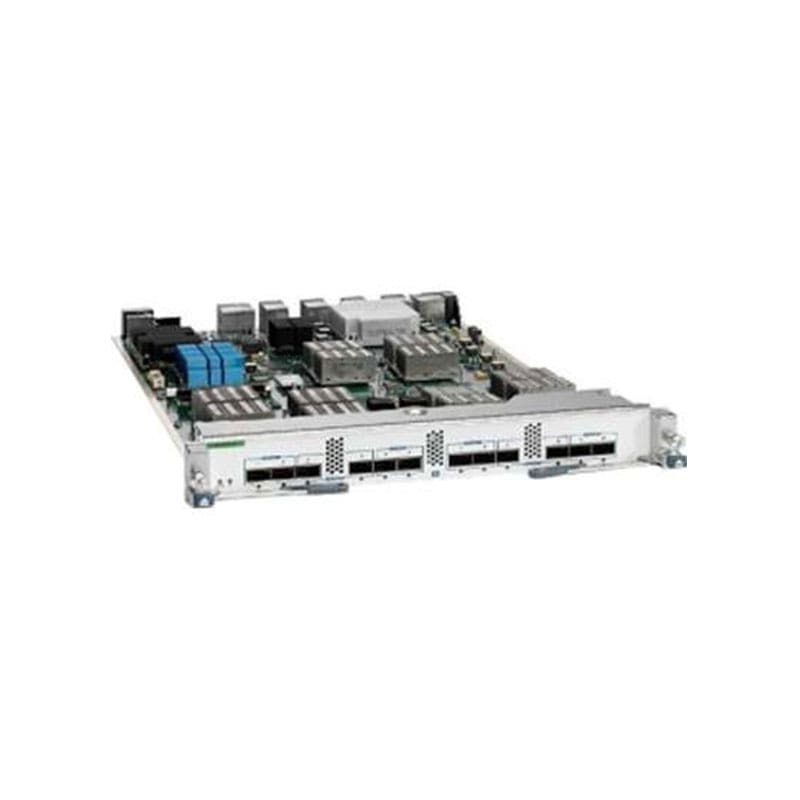

Cisco Nexus 7000 F3-Series 12-Port 40 Gigabit Ethernet Module Expansion module
Brand: Cisco
Product Line: Cisco Nexus
Model: 7000 F3-Series 12-Port 40 Gigabit Ethernet Module
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 40 Gigabit Ethernet
Data Transfer Rate: 40 GBps
Form Factor: Plug-in module
Product Type: Expansion module
Status Indicators: Link OK, Status, Unit ID
Connectivity
Interface Provided: 12 x 40Gb Ethernet / FCoE
Port Quantity: 12
Network & Adapter Ports: 40 Gigabit QSFP+
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
PerformanceForwarding performance: 720 Mpps, Throughput: 480 Gbps
Dimensions & Weight
Height: 1.7 inch
Weight: 14.99 lbs
Width: 15.3 inch
Depth: 21.9 inch
