N785-INT-SC-MM Technical Specifications

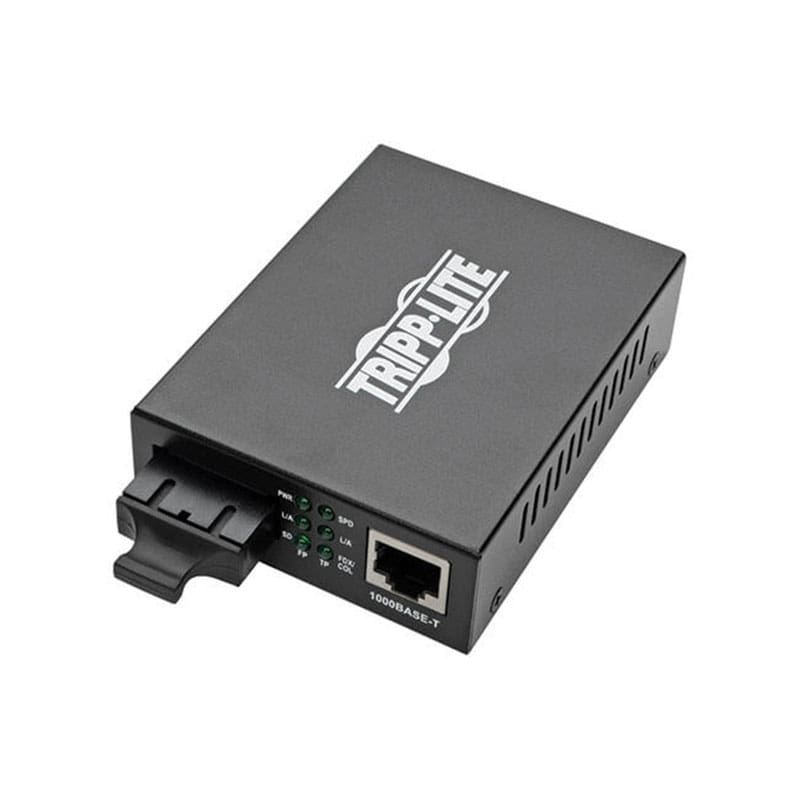

Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter

Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: N785-INT-SC-MM
Brand Name: Tripp Lite
Product Model: N785-INT-SC-MM
Product Name: N785-INT-SC-MM Transceivers/Media Converter
Marketing Information:
The economical N785-INT-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter allows you to extend your 10/100/1000 Mbps Ethernet connection up to 550 meters (1,804 feet) without the limitations of extra Cat5e/6 UTP cabling. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to use SC multimode fiber optic cabling for greater distances.
Use copper UTP cabling to connect one 850 nm N785-INT-SC-MM converter to your network device, such as a computer, and another converter to a network switch. The two converters are connected by a multimode fiber optic cable with SC connectors. The N785-INT-SC-MM supports 50/125 multimode cable up to 550 meters and 62.5/125 multimode cable up to 400 meters.
Monitoring and controlling your network nodes is easy with the converter’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter’s Ethernet network and fiber link status at a glance.
