N785-H01-SCMM Technical Specifications

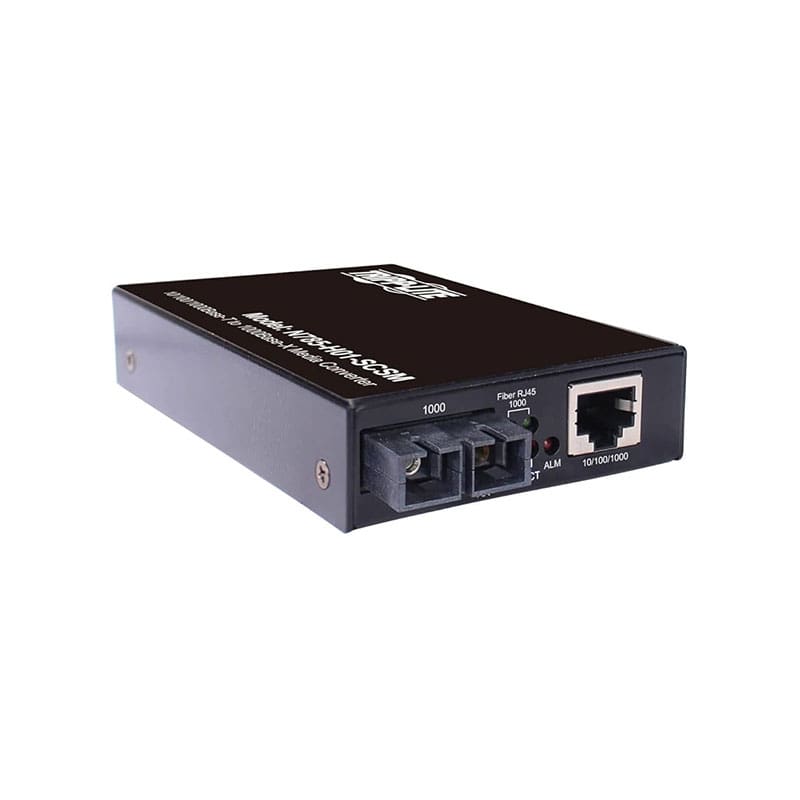

Tripp Lite Hardened Gigabit Copper to Fiber Media Converter
Brand: Tripp Lite
Product Line: Tripp Lite
Model: Hardened Gigabit Copper to Fiber Media Converter – 10/100/1000 Mbps, RJ45/SC Multimode, -10° to 60°C, 500 m (1640 ft.)
Manufacturer: Tripp lite Cables
Network & Communication
Cable Type
Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 GBps
Features
Auto-uplink (auto MDI/MDI-X), Hardened
Form Factor
External
Max Transfer Distance
1640 ft
Optical Wave Length
850 nm
Product Type
Fiber media converter
Status Indicators
Link/activity, Power, Status
Transmission Medium
CAT 5/5e/6
Connectivity
Interface Provided
1 x Ethernet 1000 – SC multi-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Power
Frequency
50/60 hertz
Power Consumption Operational
1.8 watt
Required Voltage
AC 100-240 volt
Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
SC multi-mode
Technical Information
Max Operating Temperature
140 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Operating Humidity
5 – 95% RH (non-condensing)
Product Information
Device Type
External power adapter
Mounting Kit
Included
Packaged Quantity
1
Included Items
Included Accessories
2 x connector caps, L-shape rack mount brackets
Dimensions & Weight
Height
0.9 inch
Weight
8.46 ounce
Width
2.9 inch
Depth
4.3 inch
