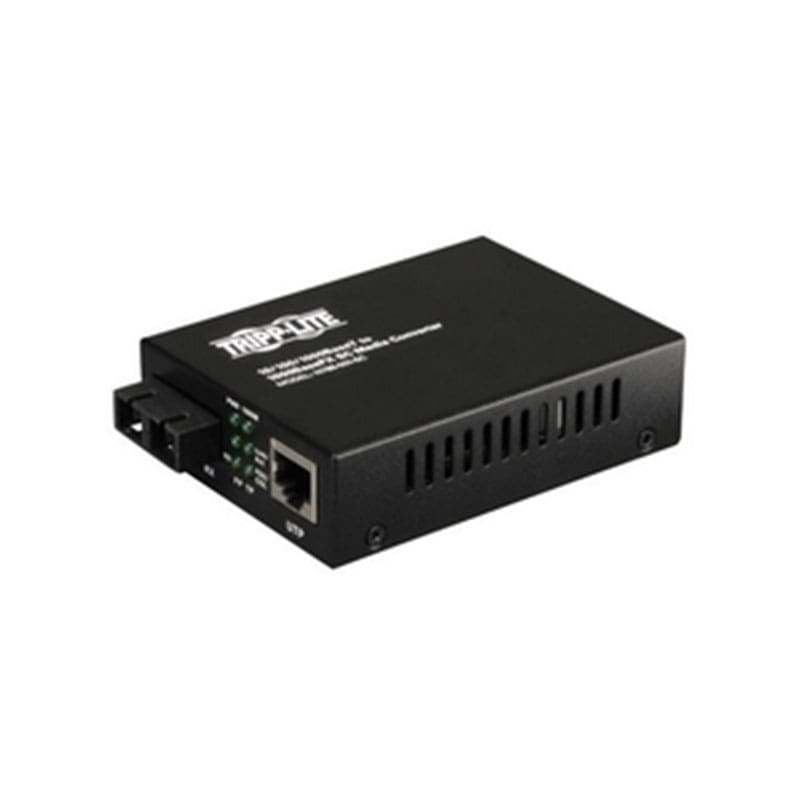

N785-001-SC Technical Specifications
Tripp Lite Fiber Optic 10/100/1000 Gigabit Multimode Media
Brand: Tripp Lite
Product Line: Tripp Lite
Model: Fiber Optic 10/100/1000 to 1000BaseLX SC Gigabit Multimode Media Converter 2km 1310nm
Manufacturer: Tripp lite Cables
Network & Communication
Cable Type
Ethernet 1000Base-FX, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 GBps
Features
Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode
Form Factor
External
Max Transfer Distance
1.2 miles
Optical Wave Length
1310 nm
Product Type
Fiber media converter
Connectivity
Interface Provided
1 x Ethernet 1000Base-FX – SC female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 female
Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
SC
Product Information
Device Type
External power adapter
Packaged Quantity
1
Dimensions & Weight
Height
1 inch
Width
2.8 inch
Depth
3.7 inch
Service & Support
Service & Support Details
Limited warranty – 2 years
Limited Warranty
2-year warranty
