N785-001-LC-MM Technical Specifications

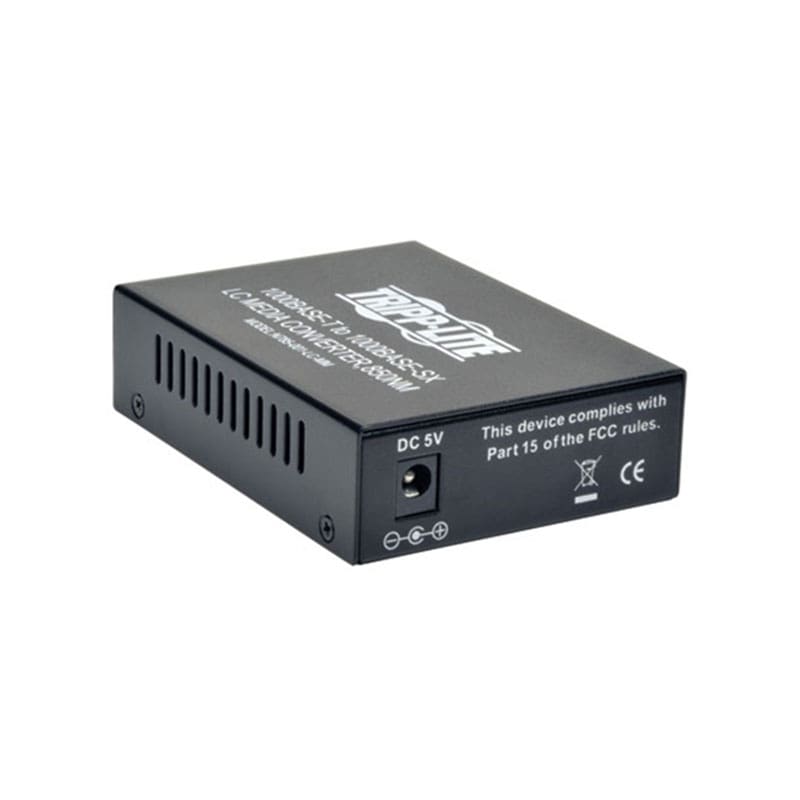

Tripp Lite LC Multimode Fiber Media Converter Gigabit
Brand: Tripp Lite
Product Line: Tripp Lite
Model: LC Multimode Fiber Media Converter Gigabit 10/100/1000 RJ45
Manufacturer: Tripp lite Cables
Network & Communication
Cable Type
Ethernet 1000Base-SX, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 GBps
Features
Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode
Form Factor
External
Max Transfer Distance
1800 ft
Optical Wave Length
850 nm
Product Type
Fiber media converter
Connectivity
Interface Provided
1 x Ethernet 1000Base-SX – LC multi-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Power
Frequency
50/60 hertz
Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
LC multi-mode
Product Information
Device Type
External power adapter
Packaged Quantity
1
Dimensions & Weight
Height
1 inch
Weight
16.01 ounce
Width
4.7 inch
Depth
2.8 inch
Physical Characteristics
Color
Black
Color Category
Black
Certifications & Listings
Compliant Standards
FCC Part 15
ENERGY STAR Certified
No
Service & Support
Service & Support Details
Limited warranty – 2 years
Limited Warranty
2-year warranty
