N77-F348XP-23 Technical Specifications

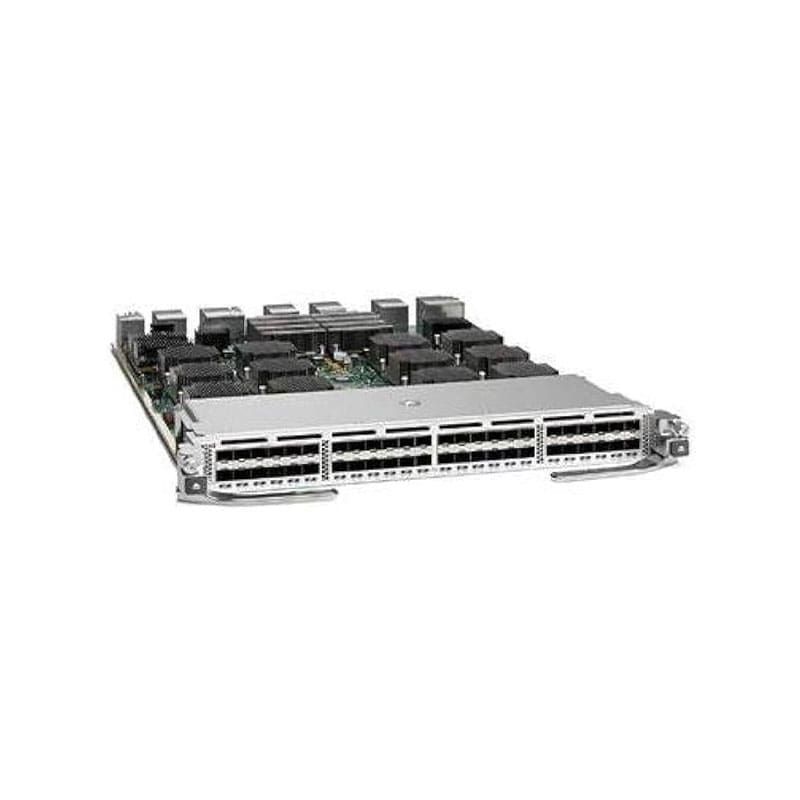

Cisco Nexus 7700 F3-Series 48-Port Fiber 1 and 10G Ethernet Module Expansion module
Brand: Cisco
Product Line: Cisco Nexus
Model: 7700 F3-Series 48-Port Fiber 1 and 10G Ethernet Module
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Form Factor: Plug-in module
MAC Address Table Size: 64K entries
Product Type: Expansion module
Connectivity
Interface Provided: 48 x 10Gb Ethernet / FCoE – SFP+
Port Quantity: 48
Network & Adapter Ports: Gigabit Ethernet / 10Gb Ethernet / Fibre Channel over Ethernet (FCoE) SFP+
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 1.7 inch
Weight: 18.52 lbs
Width: 15.9 inch
Depth: 21.8 inch
