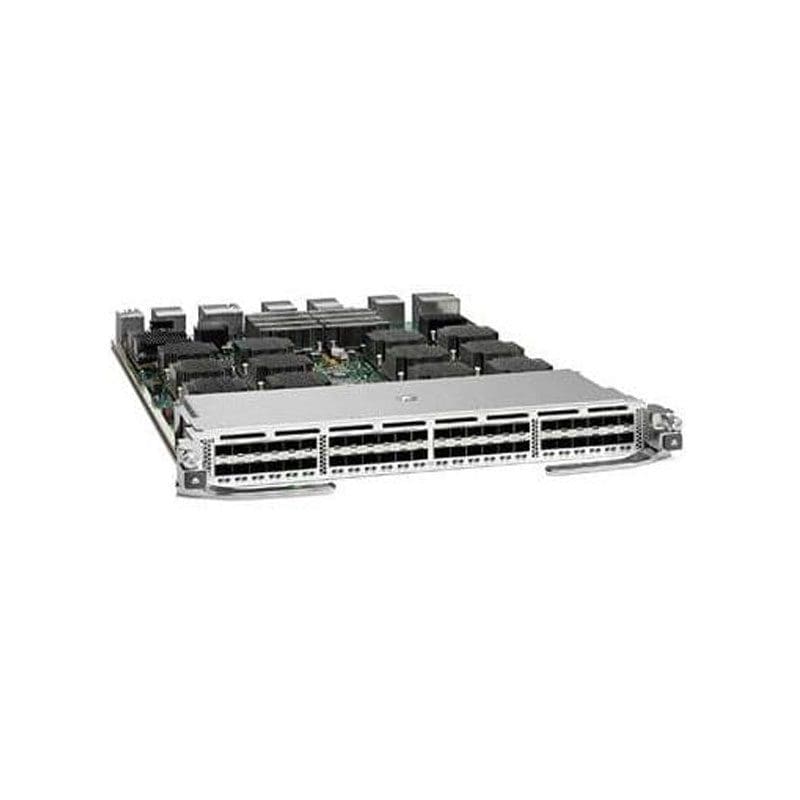

Refurbished N77-F248XP-23E Technical Specifications
Cisco Nexus 7700 F2-Series Enhanced 48-Port Fiber
Brand :Cisco
Product Line :Cisco Nexus
Model :7700 F2-Series Enhanced 48-Port Fiber 1 and 10 Gigabit Ethernet Module
Packaged Quantity :1
Performance
Performance :Forwarding performance: 720 Mpps
Capacity
Capacity :ACL: 16000, Adjacency entries: 16000, IPv4 routes: 32000, IPv6 routes: 16000, Policies: 1024, Virtual interfaces (VLANs): 4096
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
MAC Address Table Size :16K entries
Status Indicators :Link/activity, Port status
Features :Access Control List (ACL) support, ASIC VPN, Data Center Bridging Exchange (DCBX) support, Deficit Weighted Round Robin (DWRR), Jumbo Frames support, Quality of Service (QoS)
Compliant Standards :IEEE 802.1Qaz, IEEE 802.1Qbb
Ports
Qty :48
Type :Gigabit Ethernet / 10Gb Ethernet / Fibre Channel over Ethernet (FCoE) SFP+
Interface Provided
Interfaces :48 x 10Gb Ethernet / FCoE – SFP+
Power Device
Power Consumption Operational :400 watt
Miscellaneous
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :15.9 inch
Depth :21.8 inch
Height :1.7 inch
Weight :16.98 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Compatibility
Compatible With :Cisco Nexus 7700 18-Slot Switch 220 Gbps/Slot Fabric Module, 7700 Switches 10-Slot Chassis, 7700 Switches 10-Slot Switch 220 Gbps/Slot Fabric Module, 7710 Bundle
