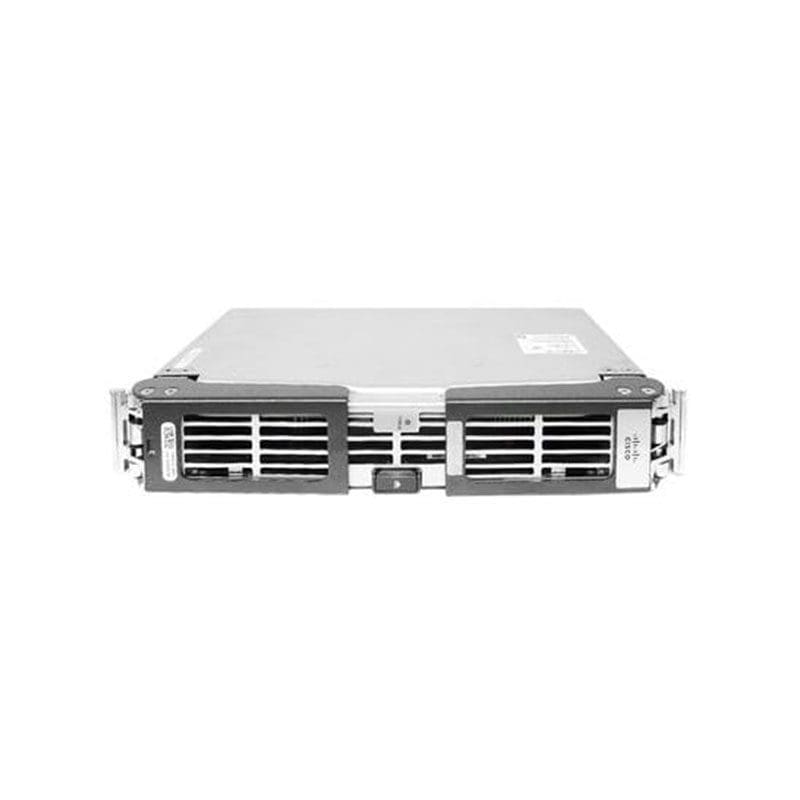

Refurbished N77-C7706-FAB-3 Technical Specifications
Cisco Nexus 7700 6-Slot Fabric Module switch managed
Brand :Cisco
Product Line :Cisco Nexus
Model :7700 6-Slot Fabric Module
Packaged Quantity :1
Performance
Performance :Per slot per fabric: 464 Gbps
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Plug-in module
Manageable :Yes
Remote Management Protocol :CLI, SNMP 1, SNMP 2c, SNMP 3
Features :Embedded Event Manager (EEM), High Availability, OpenFlow support, Quality of Service (QoS), Support for Online Insertion and Removal (OIR), Virtual Output Queue (VOQ)
System Requirements
OS Required :Cisco NX-OS 8.3(1)
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950, AS/NZS CISPR22 Class A, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EMC, EN 300 386, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-4-5, EN 61000-6-1, EN50082-1, EN55024, ETSI 300 019-2-1, ETSI 300 019-2-2, ETSI 300 019-2-3, FCC CFR47 Part 15 A, ICES-003 Class A, IEC/UL/CSA/EN 60950-1, KN22 Class A, NEBS level 3, TCG Certified, VCCI Class A
Dimensions & Weight
Width :2 inch
Depth :7.2 inch
Height :11.3 inch
Weight :5.53 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
