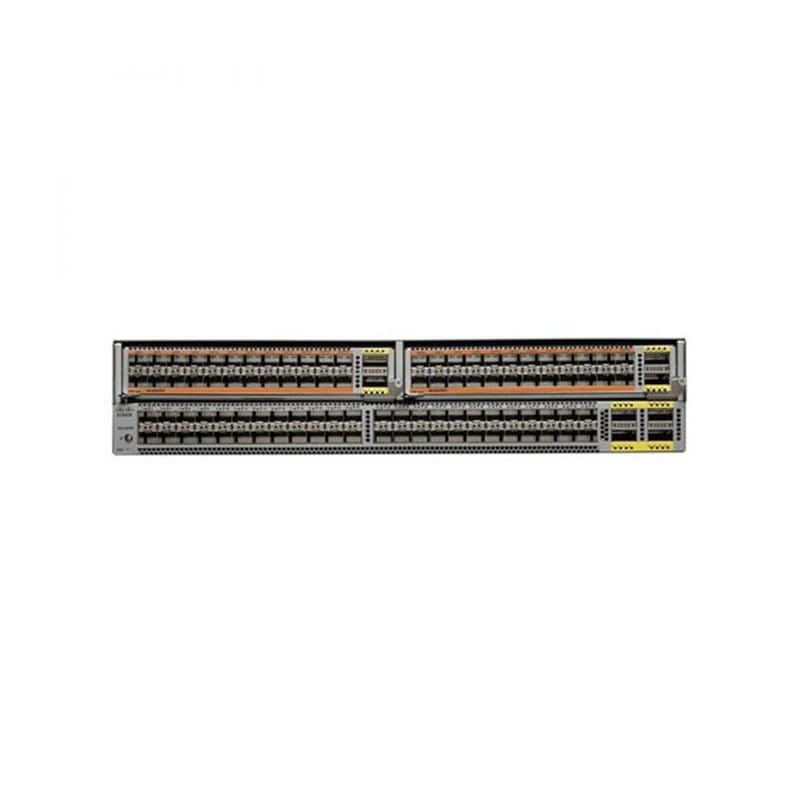

Refurbished N5K-C56128P Technical Specifications
Cisco Nexus 56128P Switch
Brand :Cisco
Product Line :Cisco Nexus
Model :56128P
Packaged Quantity :1
Performance
Performance :Forwarding performance: 2.56 Tbps
Capacity
Capacity :ACL entries: 4000, ARP entries: 256000, Equal-Cost Multipathing (ECMP) ways: 64, Host table entries (IPv4): 32000, Host table entries (IPv6): 8000, IGMP snooping entries: 8000, Multicast entries (IPv4): 8000, Multiple Spanning Tree Protocol instances: 64, Virtual interfaces (VLANs): 4096, Virtual Routing and Forwarding (VRF) entries: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :BGP, BGP for IPv6, Bidirectional Forwarding Detection (BFD), ECMP, EIGRP, EIGRP for IPv6, HSRP, IGMP, IS-IS, OSPF for IPv6, OSPFv2, PIM-SM, Policy-based routing (PBR), RIP-2, Static IPv4 routing, Static IPv6 routing, VRRP
MAC Address Table Size :256K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Status Indicators :Port status
Features :Access Control List (ACL) support, ARP support, Bidirectional Forwarding Detection (BFD), Broadcast Storm Control, Call Home function support, Class of Service (CoS), Data Center Bridging Exchange (DCBX) support, DHCP support, Dynamic ARP Inspection (DAI), Equal-Cost Multipath (ECMP), FCoE forwarding, Hot Standby Router Protocol (HSRP) support, IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Quality of Service (QoS), Redundant hot swappable fans, Registered State Change Notification (RSCN) support, STP PortFast, STP Root Guard, Syslog support, Transparent (N_Port ID Virtualization – NPIV) mode support, Unicast Reverse Path Forwarding (URPF), Unicast Storm Control, Virtual PortChannel (vPC) technology, Virtual Routing and Forwarding (VRF), VLAN support, VPN support, Weighted Round Robin (WRR) queuing
Compliant Standards :FIP v1, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x
Ports
Qty :48
Type :1 Gigabit / 10 Gigabit SFP+
Ports (2nd)
Qty :4
Type :40Gb Ethernet / FCoE QSFP+ (breakout compatible)
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 1 x USB, 4 x 40Gbit LAN QSFP+, 48 x Gigabit / 10Gbit LAN SFP+
Software
Type :Cisco NX-OS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :N+1
Installed Qty :0
Max Supported Qty :4
Power Provided :1100 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Gray
Height (Rack Units) :2
Encryption Algorithm :AES
Authentication Method :MS-CHAP, RADIUS, Secure Shell (SSH), TACACS+
Compliant Standards :AES, AS/NZS 60950-1, AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, Directive 2004/108/EC, Directive 2006/95/EC, EMC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :30 inch
Height :3.5 inch
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
