Refurbished N5696-B-24Q Technical Specifications

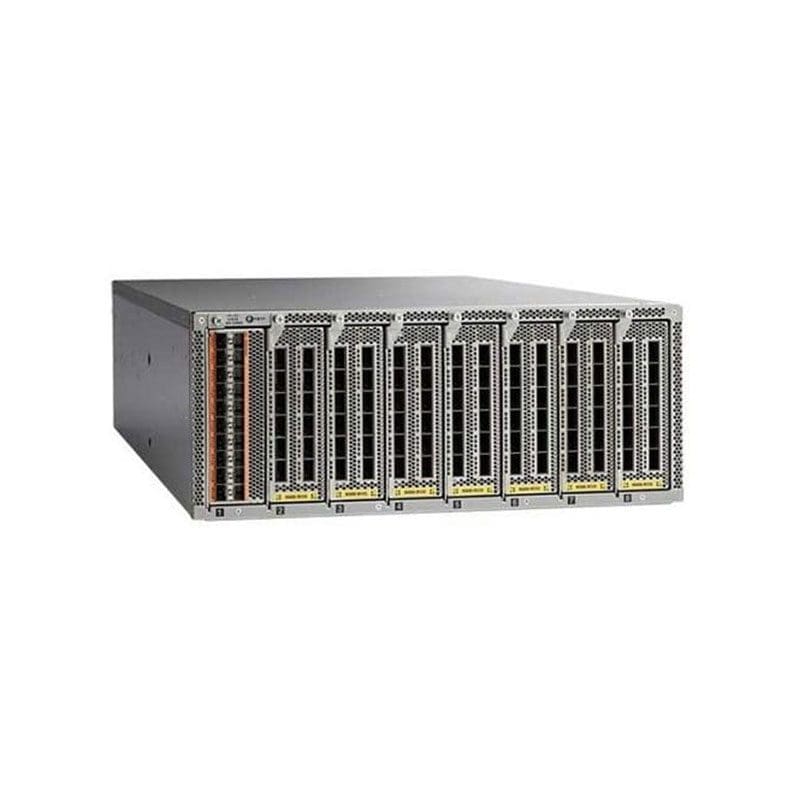

Cisco Nexus 5696Q Switch Chassis
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N5696-B-24Q
Brand Name Cisco
Product Line Nexus
Product Series 5000
Product Model 5696Q
Product Name Nexus 5696Q Switch Chassis
Product Type Switch Chassis
Technical Information−
Interfaces/Ports
Management Port Yes
Port/Expansion Slot Details 6 x Expansion Slot, 24 x 40 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots 30
Expansion Slot Type Line Card, QSFP+
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
SNMPv1, v2, and v3
SSHv2
MIB
RMON
CLI
Telnet
DHCP
Power Description
PoE (RJ-45) Port No
Input Voltage 120 V AC, 230 V AC
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 4U
Form Factor Rack-mountable
Height 7″
Width 17.3″
Depth 30″
Miscellaneous
Package Contents
Nexus 5696Q Switch Chassis
2 x Line-card Expansion Module
Certifications & Standards
Safety:
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
GB4943
EMC: Emissions
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EMC: Immunity
EN55024
CISPR24
EN300386
KN 61000-4 series
IEEE Standards:
802.1D: Spanning Tree Protocol
802.1p: CoS prioritization
802.1Q: VLAN tagging
802.1Qaz: Enhanced transmission selection
802.1Qbb: Per-priority Pause
802.1s: Multiple VLAN instances of Spanning Tree Protocol
802.1w: Rapid reconfiguration of Spanning Tree Protocol
802.3: Ethernet
802.3ad: LACP with fast timers
802.3ae
Environmentally Friendly Yes
Environmental Certification RoHS-6
