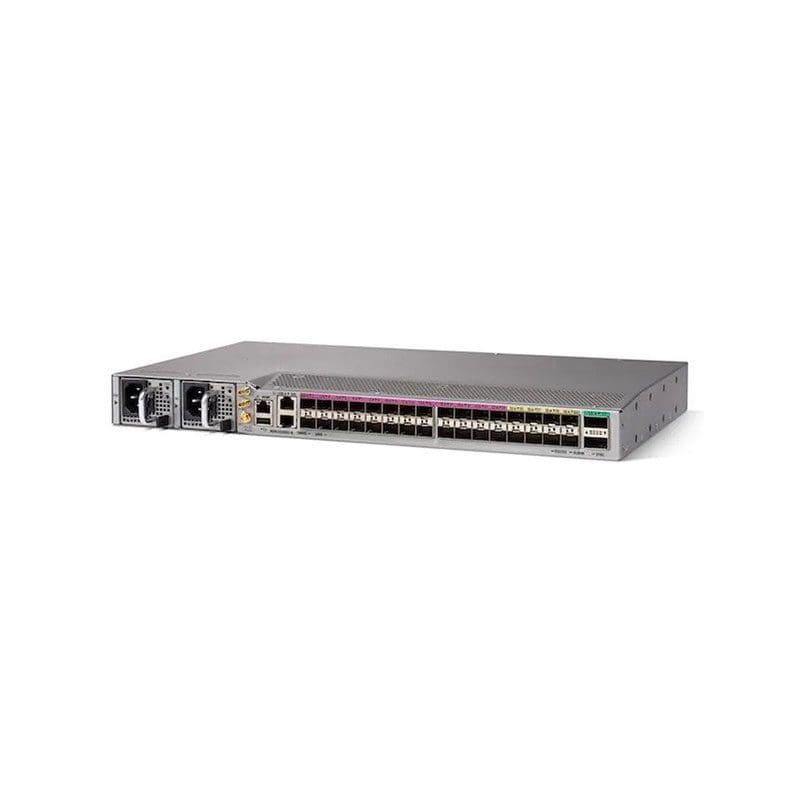

Refurbished N540-24Z8Q2C-SYS Technical Specifications
Cisco Network Convergence System 540 network management device
Device Type Network management device
Height (Rack Units) 1U
Built-in Devices GNSS receiver
Width 17.3 in
Depth 10 in
Height 1.7 in
Weight 14 lbs
Processor / Memory / Storage
Processors Installed 1.5 GHz
Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Routing Protocol BGP, VRRP, OSPFv2, IGMPv3, OSPFv3, ECMP, MLDv2, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol SNMP
Performance 300 Gbps ¦ Throughput: 300 Mpps
Capacity IPv4 forwarding information base (FIB): 128000 ¦ IPv6 forwarding information base (FIB): 32000 ¦ LAG groups: 32 ¦ Jumbo frame size: 9216
Features Layer 2 switching, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, SSH support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), 3GB packet buffer, Label Distribution Protocol (LDP), Ethernet Virtual Private Network (EVPN), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Layer 2 VPN (L2VPN) support, Zero-touch provisioning (ZTP), Intermediate System to Intermediate System (IS-IS), Integrated Routing and Bridging (IRB), Protocol Independent Multicast (PIM), Link Aggregation Group (LAG), Bridge Virtual Interface (BVI)
Authentication Method TACACS+
Compliant Standards IEEE 802.1Q, IEEE 802.1ad
Expansion / Connectivity
Interfaces 24 x 1Gb Ethernet/10Gb Ethernet – SFP+ ¦ 8 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet – SFP+/SFP28 ¦ 2 x 40Gb Ethernet/100Gb Ethernet – QSFP+/QSFP28 ¦ 2 x management – RJ-45
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-2, EN 61000-4-6, ICES-003 Class A, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, RoHS, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 50121-4, GR-1089-CORE, VCCI Class A, KN24, GR-63-CORE, KN22 Class A, GR-1244-CORE, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, KN 61000-4-2, KN 61000-4-11, KN 61000-4-6, ANSI T1.101, SR-3580 NEBS Level 3, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 300386 Class A, ETSI EN 300 019, AS/NZS 60950-1:2003, GR-3108, ETSI EN 300 753, ITU-T G.8264, ITU-T G.8265.1, ITU-T G.8275.2
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 2
Power Redundancy Yes
Power Consumption Operational 270 Watt
Software / System Requirements
OS Provided Cisco IOS XR 6.3.2
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 158 °F
Humidity Range Operating 5 – 95% (non-condensing)
