Refurbished N3K-C3064PQ-10GX Technical Specifications

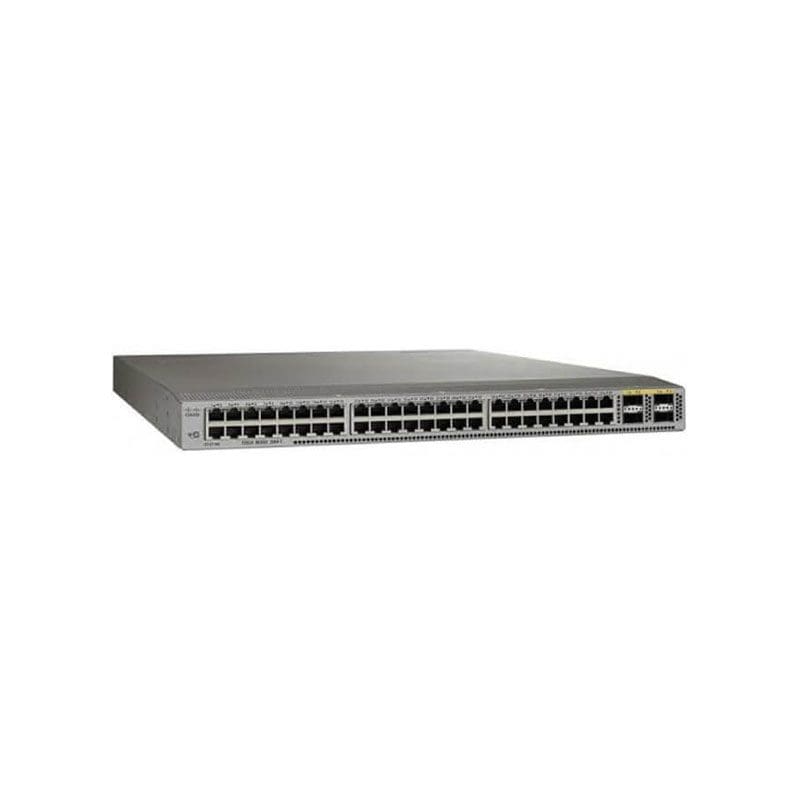

Cisco Nexus 3064 Switch
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N3K-C3064PQ-10GX
Brand Name Cisco
Product Line Nexus
Product Series 3000
Product Model 3064
Product Name Nexus 3064 Switch
Product Type Layer 3 Switch
Technical Information−
Interfaces/Ports
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Stack Port No
Port/Expansion Slot Details 48 x 10 Gigabit Ethernet Expansion Slot, 4 x 40 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots 52
Expansion Slot Type QSFP+, SFP+
Number of SFP+ Slots 48
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
Web-Based Management
Command Line Interface
SNMP v1, v2, v3
Cisco OHMS
Cisco DCNM
Syslog
Telnet
RMON
DHCP
VLAN
QoS
MIB
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 17.3″
Depth 19.7″
Weight (Approximate) 20.50 lb
Miscellaneous
Certifications & Standards
IEEE 802.1D: Spanning Tree Protocol
IEEE 802.1p: CoS Prioritization
IEEE 802.1Q: VLAN Tagging
IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol
IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol
IEEE 802.3z: Gigabit Ethernet
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.3ae: 10 Gigabit Ethernet
IEEE 802.1ab: LLDP
IEEE 1588-2008: Precision Time Protocol (Boundary Clock)
Safety:
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
GB4943
EMC: Emissions:
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EMC: Immunity:
EN55024
CISPR24
EN300386
KN24
Environmentally Friendly Yes
Environmental Certification RoHS-5
