N2XX-AEPCI03 Technical Specifications

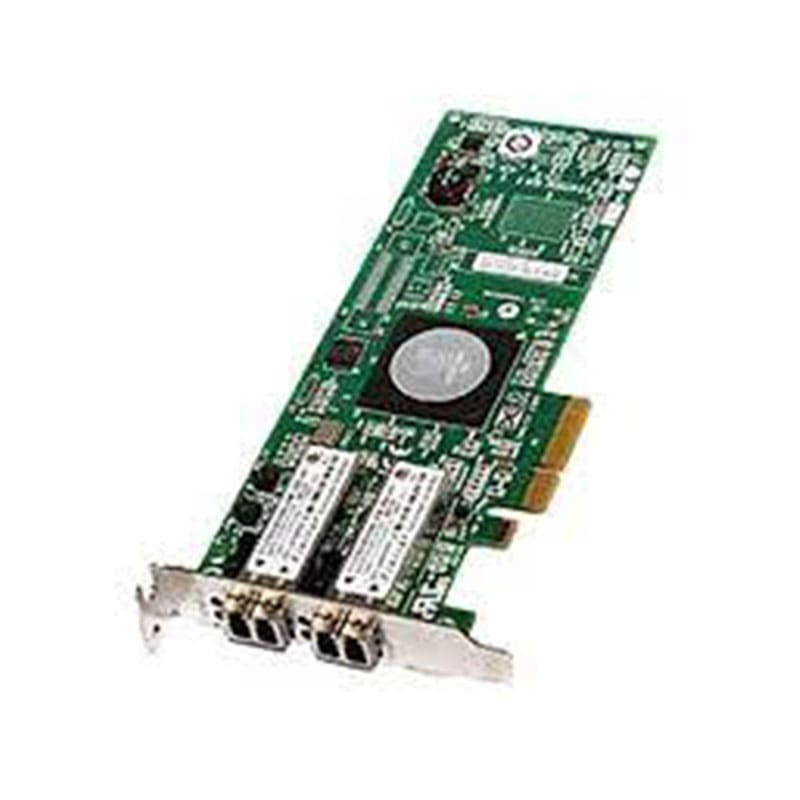

Emulex LightPulse LPE11002 Host Bus Adapter PCIe x4 Fibre Channel x 2
Brand: Emulex
Product Line: Emulex LightPulse
Model: LPE11002
Manufacturer: Cisco Unified Computing
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 4Gb Fibre Channel
Data Transfer Rate: 4.24 GBps
Features: Auto-negotiation, Firmware upgradable
Form Factor: Plug-in card
Host Interface: PCI Express x4
Max Transfer Distance (Optical): 500 ft
PCI Specification Revision: PCIe 1.0a
Product Type: Host bus adapter
Expansion Slots
Compatible Slots Required: 1 x PCI Express x4
Connectivity
Interface Provided: 2 x Fibre Channel – LC multi-mode – x 2
Port Quantity: 2
Network & Adapter Ports: Fibre Channel
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95%
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 2.5 inch
Depth: 6.6 inch
