N2XX-ABPCI03-M3 Technical Specifications

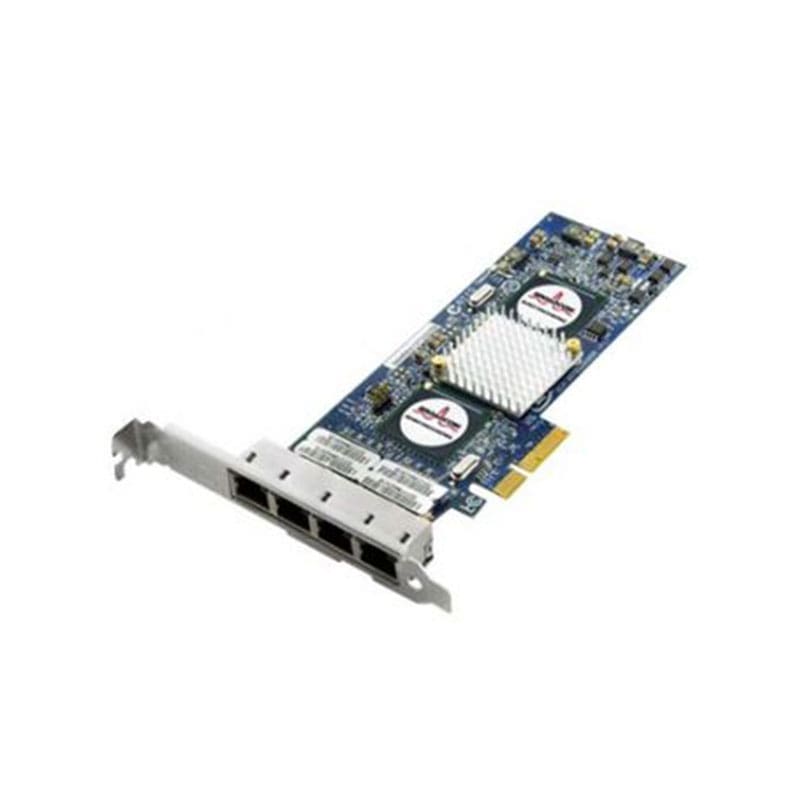

Broadcom NetXtreme II 5709 Network Adapter PCIe x4 Gigabit Ethernet x
Brand: Broadcom
Product Line: Broadcom NetXtreme II
Model: 5709
Manufacturer: Cisco Unified Computing
Processor
Processor Brand: Broadcom
Processor Number: BCM5709C
Processor Type: BCM5709C
Processors Installed: 1
Network & Communication
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards: IEEE 802.1Q, IEEE 802.2, IEEE 802.3ad (LACP), IEEE 802.3p, IEEE 802.3x, IEEE 802.3z
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate: 1 GBps
Form Factor: Plug-in card
Host Interface: PCI Express x4
Low Profile: Low profile
Network Standard: IP/IPX, IPX/SPX, iSCSI, NetBEUI/NetBIOS, TCP/IP
Product Type: Network adapter
Expansion Slots
Compatible Slots Required: 1 x PCI Express x4 – low-profile
Connectivity
Interface Provided: 4 x 1000Base-T – RJ-45
Port Quantity: 4
Network & Adapter Ports: 10/100/1000
