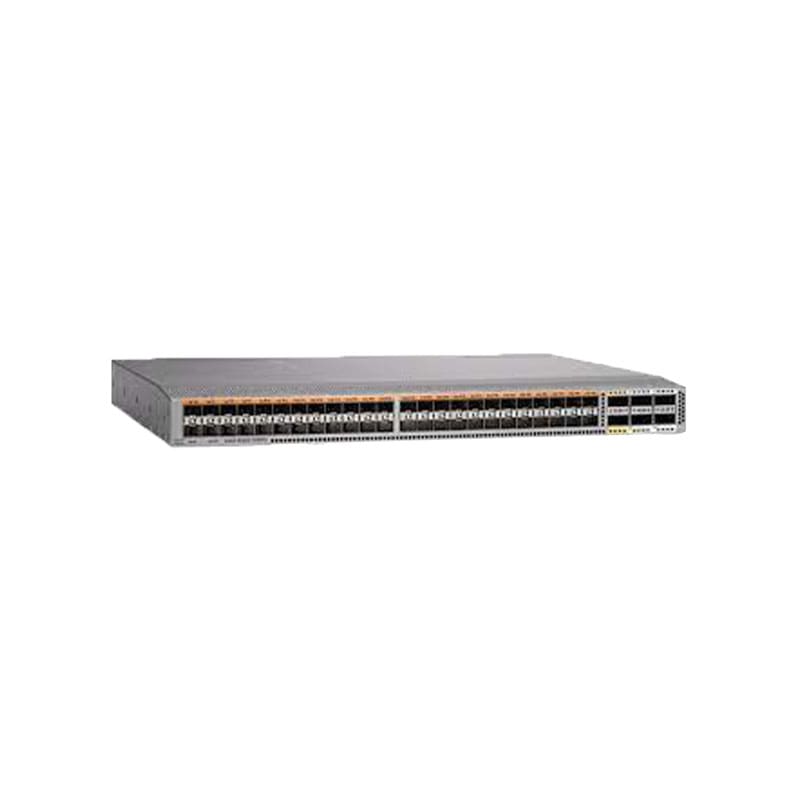

N2K-C2348UPQ4F Technical Specifications
Cisco Nexus 2348UPQ 10GE Fabric Extender Expansion module Gigabit Ethernet
Brand: Cisco
Product Line: Cisco Nexus
Model: 2348UPQ 10GE Fabric Extender
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Form Factor: Rack-mountable
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Product Type: Expansion module
Connectivity
Interface Provided: 48 x 1Gb Ethernet/10Gb Ethernet – SFP/SFP+, 6 x 40Gb Ethernet – QSFP+
Port Quantity: 48
Network & Adapter Ports: Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC)
Power
Frequency: 50/60 hertz
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 1.7 inch
Weight: 18.3 lbs
Width: 17.3 inch
Depth: 14.1 inch
