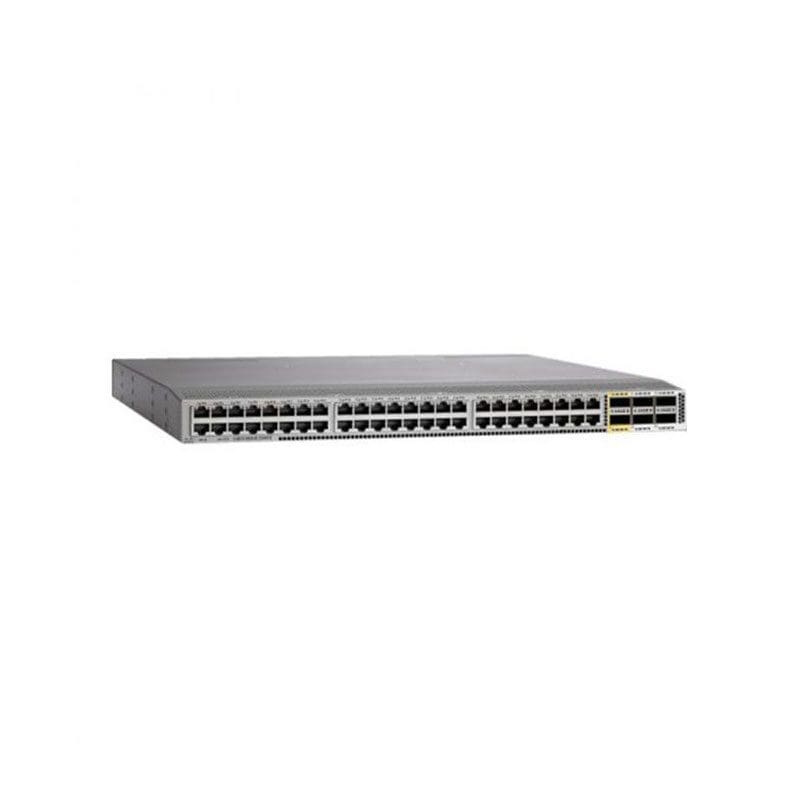

N2K-C2348TQ-E Technical Specifications
Cisco Nexus 2348TQ-E 10GE Fabric Extender Expansion Module – 100Mb LAN///FCoE/40 Gigabit LAN
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N2K-C2348TQ-E
Brand Name Cisco
Product Description Cisco Nexus 2348TQ-E 10GE Fabric Extender – expansion module
Device Type Expansion module
Form Factor Rack-mountable
Networking
Ports Gigabit Ethernet / 10Gb Ethernet x 48 + 40 Gigabit QSFP+ x 6
Connectivity Technology Wired
Data Link Protocol 100Mb LAN, GigE, 10 GigE, FCoE, 40 Gigabit LAN
Performance Forwarding performance (full duplex): 480 Gbps ¦ Forwarding performance: 240 Gbps
Capacity Jumbo frame size: 9216 ¦ ACL entries: 256
Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, CLI
Status Indicators Port status, power, system
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3an
Expansion / Connectivity
Interfaces 48 x 1Gb Ethernet/10Gb Ethernet – RJ-45 ¦ 6 x 40Gb Ethernet – QSFP+
Power
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Required Cisco NX-OS
