Refurbished N2K-C2248TP-1GE Technical Specifications

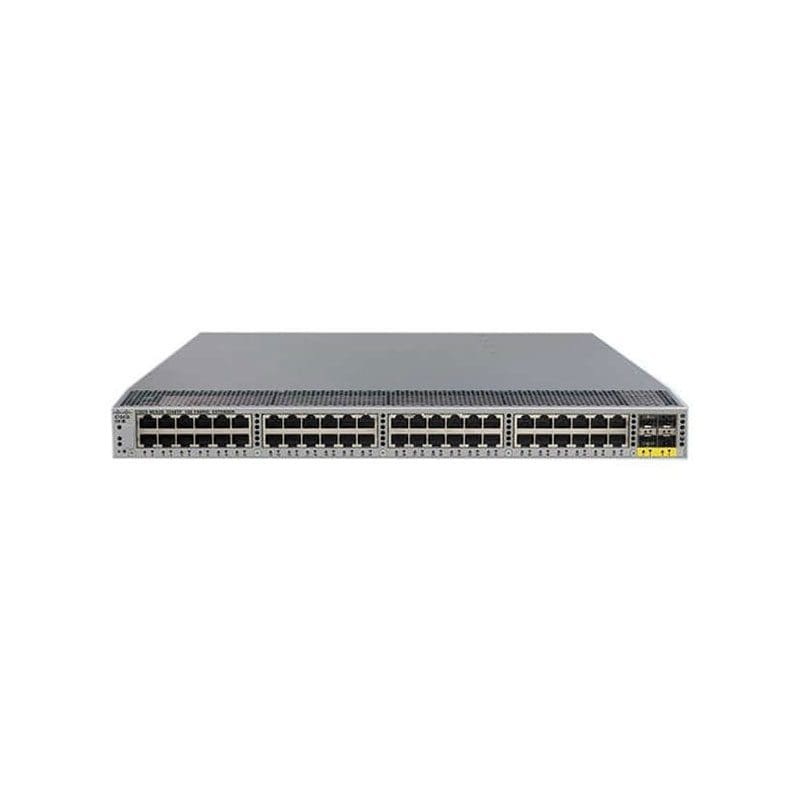

Cisco Nexus 2248TP Fabric Extender
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N2K-C2248TP-1GE
Brand Name Cisco
Product Line Nexus
Product Series 2000
Product Model 2248TP
Product Name Nexus 2248TP Fabric Extender
Product Type Fabric Extender
Form Factor :Rack-mountable
Connectivity Technology :Wired
Cabling Type :Ethernet 1000Base-T, Ethernet 100Base-TX
Data Link Protocol :Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol :ICMP/IP, TCP/IP, UDP/IP
Remote Management Protocol :RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Port status, Power, System
Features :Access Control List (ACL) support, Auto-negotiation, Flow control, Full duplex capability, Hot swap module replacement, IGMP snooping, IPv6 support, Jumbo Frames support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Syslog support, Uplink, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Ports
Qty :48
Type :10/100/1000
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x SFP+
Interface Provided
Interfaces :48 x 1000Base-T – RJ-45
Power Device
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :110 watt
Miscellaneous
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :17.7 inch
Height :1.7 inch
Weight :17.64 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 95%
Compatibility
Compatible With :Cisco Nexus 5010, 5020, 6001, 6001P, 6001P Chassis, 6001T, 6004, 7000 Series 10-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 110Gbps/Slot Fabric Module, 7000 Series 18-Slot Chassis 46-Gbps/Slot Fabric Module, 7000 Series 4-Slot Chassis, 7000 Series 9-Slot Chassis, 7000 Series 9-Slot Chassis 110Gbps/Slot Fabric Module, 7009, 7010, 7010 Bundle, 7700 18 Slot Chassis, 7700 2 Slot Chassis, 7700 6 Slot Chassis, 7700 Switches 10-Slot Chassis, 7702, 7706, 7710, 7710 Bundle, 9504, 9504 Chassis Bundle, 9508, 9508 Chassis Bundle, 9516
