Refurbished N2K-C2232TF-10GE Technical Specifications

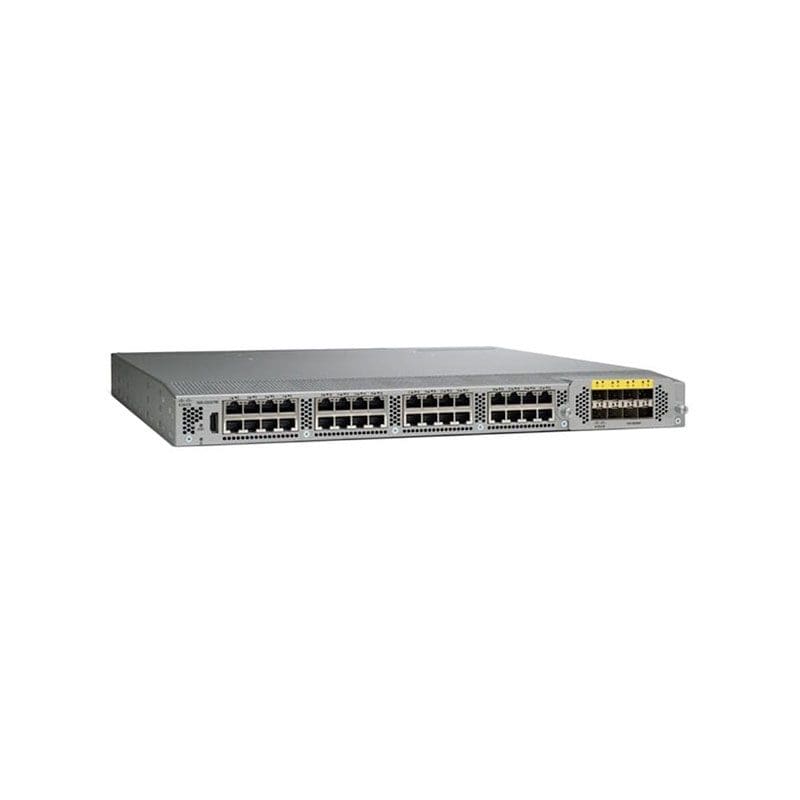

Cisco Nexus 2232TM Fabric Extender
Brand :Cisco
Product Line :Cisco Nexus
Model :2232TM Fabric Extender
Bundled with :16 x Cisco Nexus 2000 Series Fabric Extender Transceiver (FET-10G)
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Rack-mountable
Connectivity Technology :Wired
Cabling Type :Ethernet 10GBase-T
Data Link Protocol :10 Gigabit Ethernet
Network / Transport Protocol :ICMP/IP, TCP/IP, UDP/IP
Remote Management Protocol :RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Port status, Power, System
Features :Access Control List (ACL) support, Auto-negotiation, Flow control, Full duplex capability, Hot swap module replacement, IGMP snooping, Jumbo Frames support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Syslog support, Uplink, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Ports
Qty :32
Type :10Gb Ethernet
Expansion Slots
Expansion Slots :8 (total) / 0 (free) x SFP+
Interface Provided
Interfaces :32 x 10Gb Ethernet – RJ-45
Power Device
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :17.7 inch
Height :1.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
