Refurbished N2K-C2232PP Technical Specifications

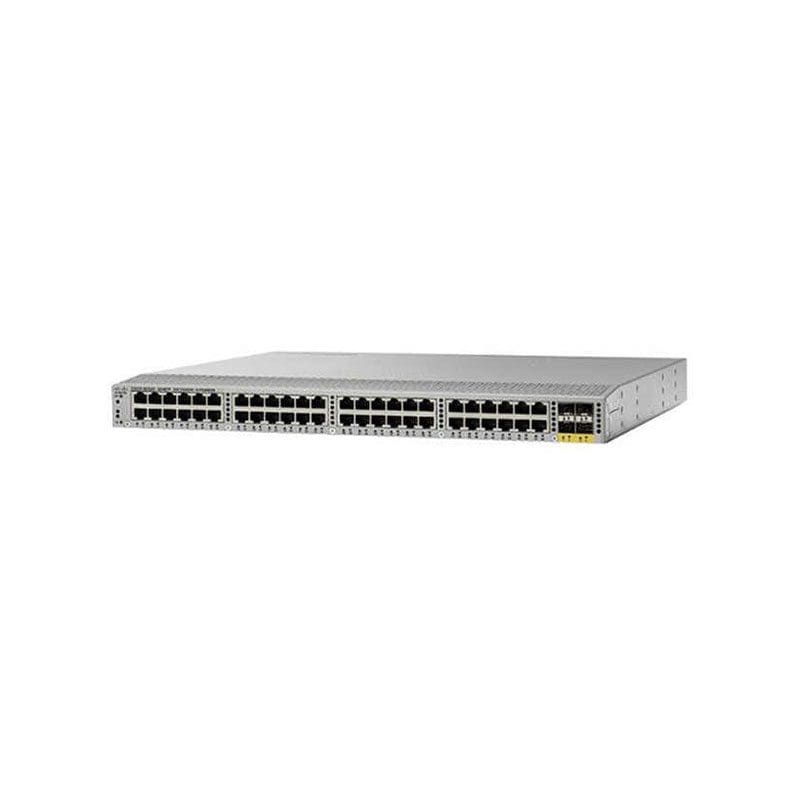

Cisco Nexus 2232PP 10GE Fabric Extender expansion module
Brand :Cisco
Product Line :Cisco Nexus
Model :2232PP 10GE Fabric Extender
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Network / Transport Protocol :ICMP/IP, TCP/IP, UDP/IP
Remote Management Protocol :RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Port status, Power, System
Features :Access Control List (ACL) support, Auto-negotiation, Flow control, IGMP snooping, Jumbo Frames support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Syslog support, Uplink, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ae
Ports
Qty :32
Type :Gigabit Ethernet / 10Gb Ethernet / Fibre Channel over Ethernet (FCoE) SFP+
Ports (2nd)
Qty :8
Type :10Gb Ethernet / Fibre Channel over Ethernet (FCoE) SFP+
Expansion Slots
Expansion Slots :40 (total) / 40 (free) x SFP+
Miscellaneous
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :17.7 inch
Height :1.7 inch
Weight :18.3 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
