N2K-C2232PF Technical Specifications

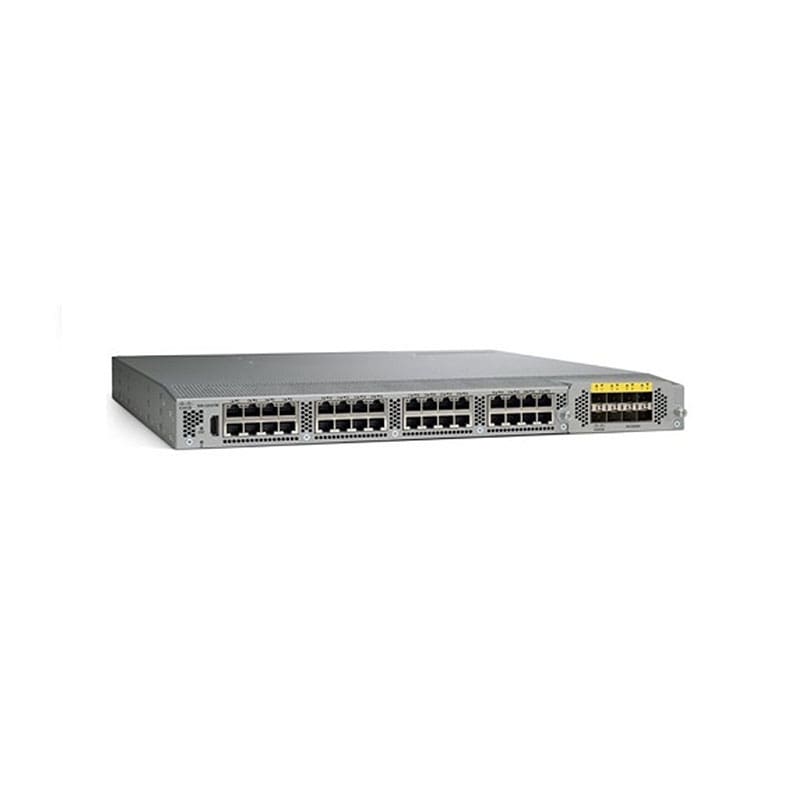

Cisco Nexus 2232PP 10GE Fabric Extender Expansion module Gigabit Ethernet/10Gb Ethernet / FCoE SFP+ x 32+ 10Gb
Brand: Cisco
Product Line: Cisco Nexus
Model: 2232PP 10GE Fabric Extender
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Form Factor: Rack-mountable
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Product Type: Expansion module
Remote Management: RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators: Port status, Power, System
Expansion Slots
Expansion Slots: 40 (total) / 24 (free) x SFP+
Connectivity
Port Quantity: 32
Network & Adapter Ports: Gigabit Ethernet / 10Gb Ethernet / Fibre Channel over Ethernet (FCoE) SFP+
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Dimensions & Weight
Height: 1.7 inch
Weight: 18.3 lbs
Width: 17.3 inch
Depth: 17.7 inch
