N2K-C2148T-1GE Technical Specifications

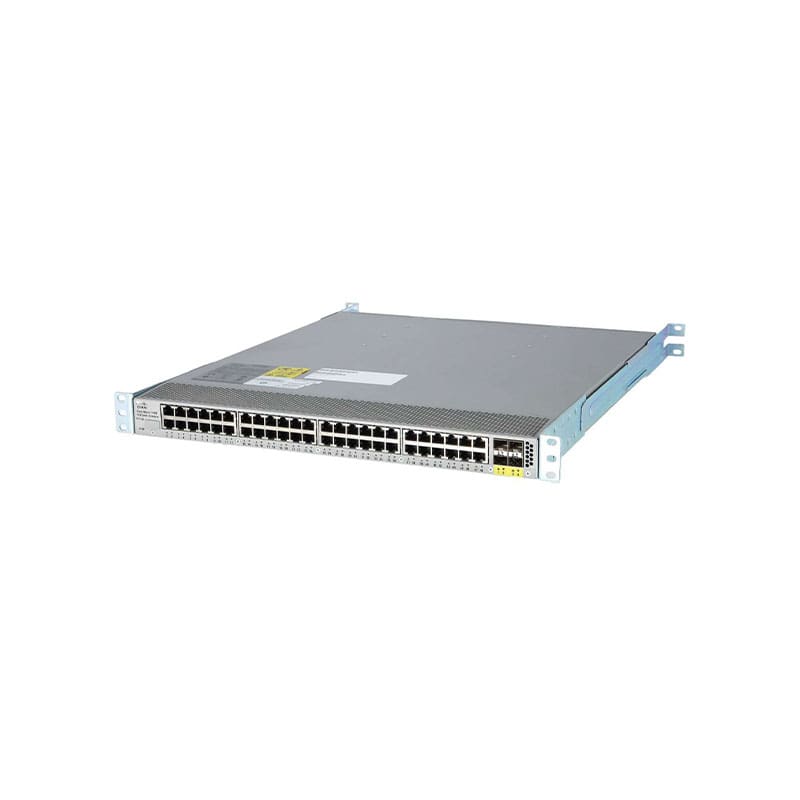

Cisco 48 Ports Nexus 2148T Fabric Extender
Manufacturer: Cisco
Product Line: Nexus
Product Series: Nexus 2148T
Product Type: Expansion Module
Interfaces
Total Number of Network Ports: 48
Management & Protocols
Data Link Protocol: Gigabit Ethernet
Auxiliary Ports: 4 x SFP+
Performance
Cabling Type: Ethernet 1000Base-T
Expansion / Connectivity
Expansion Slots Total (Free): 4 ( 4 ) x SFP+
Interfaces: 48 x network – Ethernet 1000Base-T – RJ-45
Power
Power Device: Power supply – hot-plug / redundant – plug-in module
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 165 Watt
Dimensions & Weight
Width: 17.3 Inch
Depth: 20 Inch
Height: 1.7 Inch
Weight: 16.53 LBS
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 95%
