MZVL2512HCJQ-00A00 Technical Specification

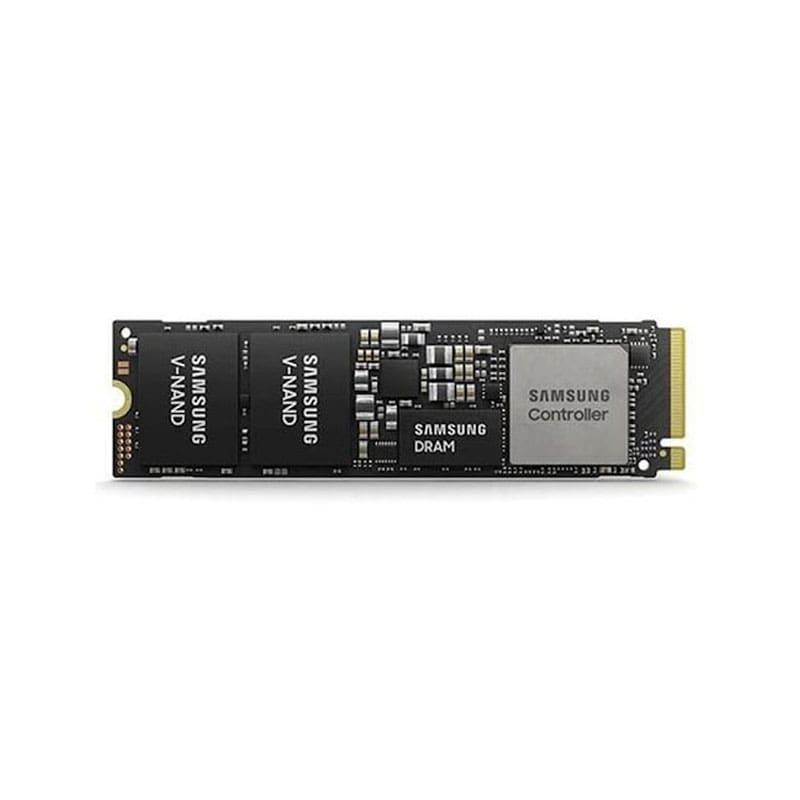

Samsung PM9A1 PCIe 4 M.2 512GB NVMe Solid State Drive
Manufacturer: Samsung
Brand: Samsung
Capacity: 512GB (conforms approx. 476.84GiB, weiterführende informations hierzu)
Type: Solid State modules (SSM)
shape factor: M.2 2280
Interface: M.2/M-Key (PCIe 4.0 x4)
Read: 6900MB/s
Write: 5000MB/s SLC-Cached
IOPS 4K: 800k lesend, 800k schreibend
memory modules: 3D-NAND TLC, Samsung, 128 Layer (V-NAND v6)
TBW: 300TB
Reliability prediction: 1.5 Mio. hours (MTBF)
controller: Samsung Elpis/S4LV003, 8 channels
cache: 512MB (LPDDR4), SLC-Cache
Protocol: NVMe 1.3c
Data protection features: 256bit AES, TCG opal 2.0
Power consumption: 35mW (idle), 5mW (Sleep mode)
Dimensions: 80x22x2.4mm (without Cooling Blocks)
Special features: L1.2 Low-Power-standby
