MZ-V8V500B/AM Technical Specifications

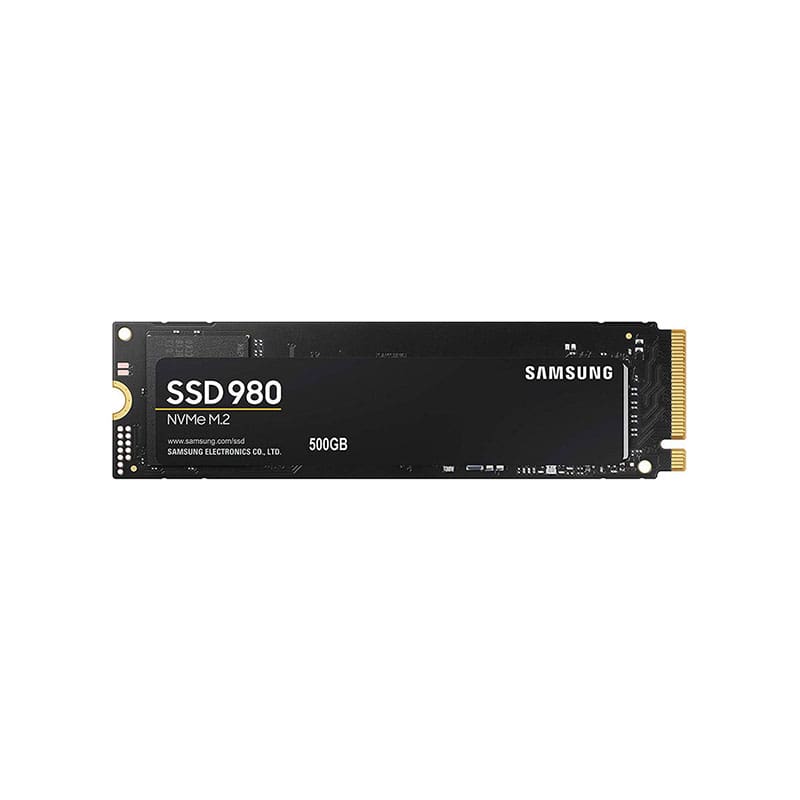

Samsung 980 Series 500GB TLC PCI NVMe M.2 2280 Internal SSD
Brand Samsung
Product Line Samsung 980
Model MZ-V8V500B
Manufacturer Samsung Storage
Storage
Compliant Standards
S.M.A.R.T.
Endurance Type 300 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 500 GB
Hard Drive Features
Auto Garbage Collection Algorithm, Device Sleep support, Host Memory Buffer (HMB), Intelligent TurboWrite Technology, NVM Express (NVMe) 1.4, TRIM support
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max Internal Data Transfer Rate 3100 MBps
Max Write Transfer Rate 2600 MBps
Storage Interface
PCI Express 3.0 x4 (NVMe)
Connectivity
Interface Provided
PCI Express 3.0 x4 (NVMe) – M.2 Card
Power
Power Consumption
4.3 Watt (average), 45 mW (idle)
Software
Software Type
Samsung Magician Software
Technical Information
Compatible Bay
M.2 2280
Hard Drive Form Factor
M.2 2280
Hard Drive Form Factor (metric)
M.2 2280
Encryption
256-bit AES
MTBF
1,500,000 Hours
Shock Acceleration (Operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Product Information
Encryption Details
TCG Opal Encryption 2.0
Hardware Encryption
Yes
Packaged Quantity
1
Product Type
Solid state drive
Dimensions & Weight
Height 0.1 inch
Width 0.9 inch
Depth 3.2 inch
