MZ-QL23T800 Technical Specifications

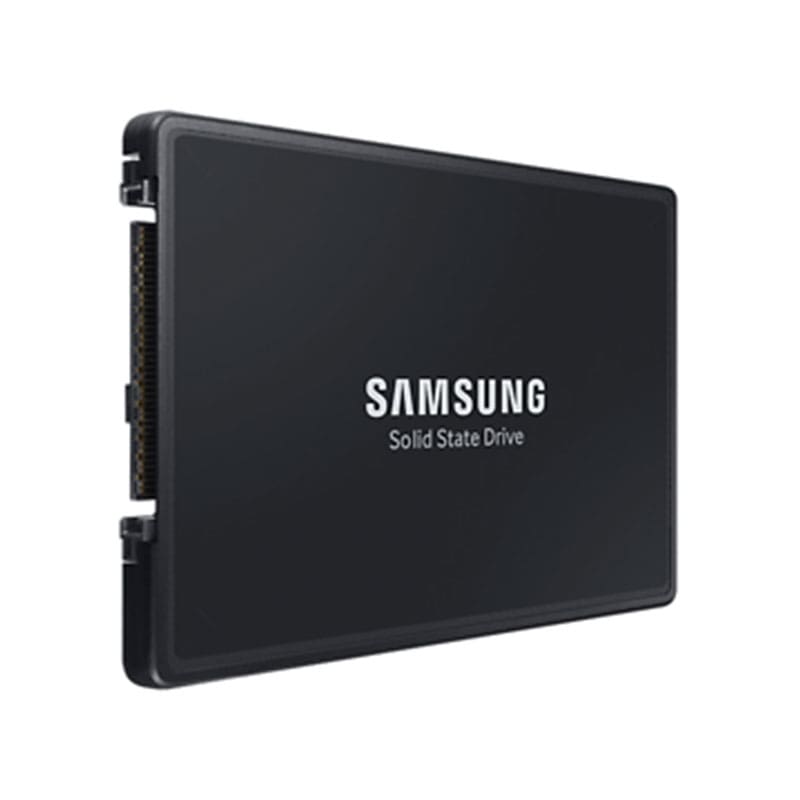

Samsung PM9A3 – SSD – 3.84 TB – U.2 PCIe 4.0 x4 (NVMe)
Brand Samsung
Product Line Samsung PM9A3
Model MZ-QL23T800
Manufacturer Samsung Storage
Storage
Compliant Standards
S.M.A.R.T.
Form Factor (Short) 2.5″
Form Factor (Short) (metric) 6.4 cm
Hard Drive Capacity 3.84 TB
Hard Drive Features
Auto Garbage Collection Algorithm, Low Power SDRAM cache, NGUID supported, Samsung Elpis Controller, Samsung V-NAND TLC Technology, TRIM support, Worldwide Name (WWN)
Hard Drive Type
Internal hard drive
HD Interface
U.2 PCIe 4.0 x4 (NVMe)
Max Internal Data Transfer Rate 6900 MBps
Max Write Transfer Rate 4100 MBps
NAND Flash Memory Type Triple-level cell (TLC)
Storage Interface
U.2 PCIe 4.0 x4 (NVMe)
4KB Random Read 1000000 IOPS
4KB Random Write 180000 IOPS
Connectivity
Interface Provided
PCI Express 4.0 x4 U.2 (NVMe)
Power
Power Consumption
11 Watt (read), 13.5 Watt (write), 3.5 Watt (idle)
Software
Software Type
Samsung SSD DC Tool kit
Technical Information
Compatible Bay 2.5″
Hard Drive Form Factor 2.5″
Hard Drive Form Factor (metric) 6.4 cm
Encryption 256-bit AES
Max Operating Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
2,000,000 Hours
Shock Acceleration (Operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Product Information
Encryption Details
TCG Opal Encryption
Hardware Encryption
Yes
Packaged Quantity 1
Product Type Solid state drive
Dimensions & Weight
Height 0.3 inch
Weight 3.17 ounce
Width 2.7 inch
Depth 3.9 inch
