MZ-77E4T0E Technical Specifications

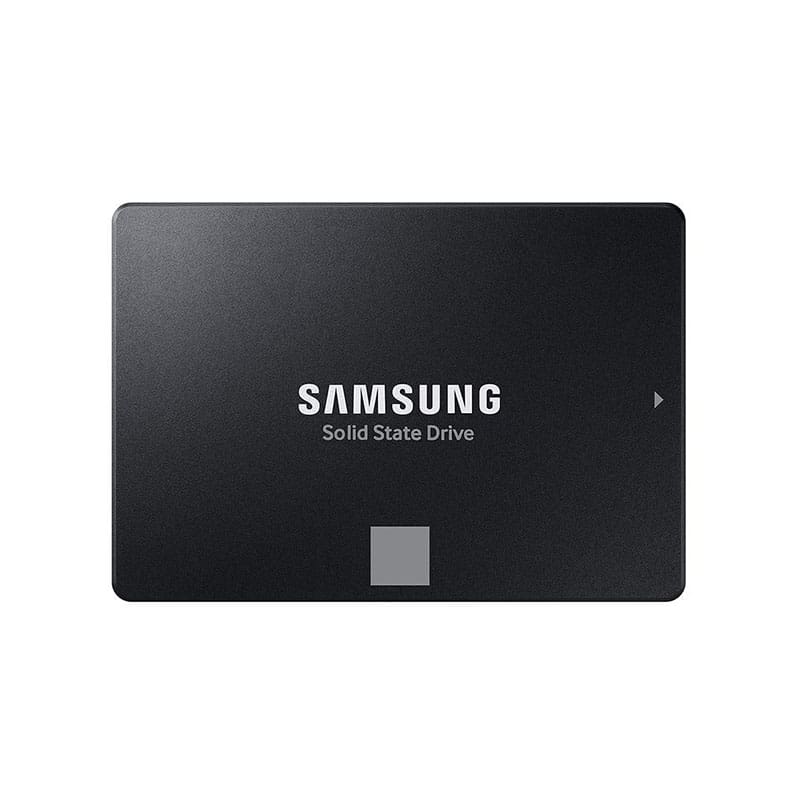

Samsung 870 EVO Series 4TB TLC SATA 6Gbps 2.5-inch Internal SSD
Brand Samsung
Product Line Samsung 870 EVO
Model MZ-77E4T0E
Manufacturer Samsung Storage
Storage
Buffer Size 4 GB
Compliant Standards
S.M.A.R.T.
Endurance Type 2400 TB
Form Factor (Short) 2.5″
Form Factor (Short) (metric) 6.4 cm
Hard Drive Capacity 4 TB
Hard Drive Features
Auto Garbage Collection Algorithm, DDR4 DRAM Cache, Device Sleep support, eDrive, Samsung V-NAND 3bit MLC Technology, Sleep mode, TRIM support
Hard Drive Type
Internal hard drive
HD Interface
Serial ATA-600
Max Internal Data Transfer Rate 560 MBps
Max Write Transfer Rate 530 MBps
NAND Flash Memory Type
Multi-level cell (MLC)
Storage Interface
Serial ATA-600
Connectivity
Interface Provided
1 x SATA 6 Gb/s – 7 pin Serial ATA
Power
Power Consumption
3.5 Watt (read), 35 mW (idle)
Software
Software Type
Samsung Magician Software
Technical Information
Compatible Bay 2.5″
Hard Drive Form Factor 2.5″
Hard Drive Form Factor (metric) 6.4 cm
Encryption 256-bit AES
MTBF
1,500,000 Hours
Shock Acceleration (Non-operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Product Information
Encryption Details
TCG Opal Encryption 2.0
Hardware Encryption
Yes
Packaged Quantity
1
Product Type
Solid state drive
Dimensions & Weight
Height 0.3 inch
Weight 2.41 ounce
Width 2.7 inch
Depth 3.9 inch
