MX960-PREMIUM3-AC Technical Specifications

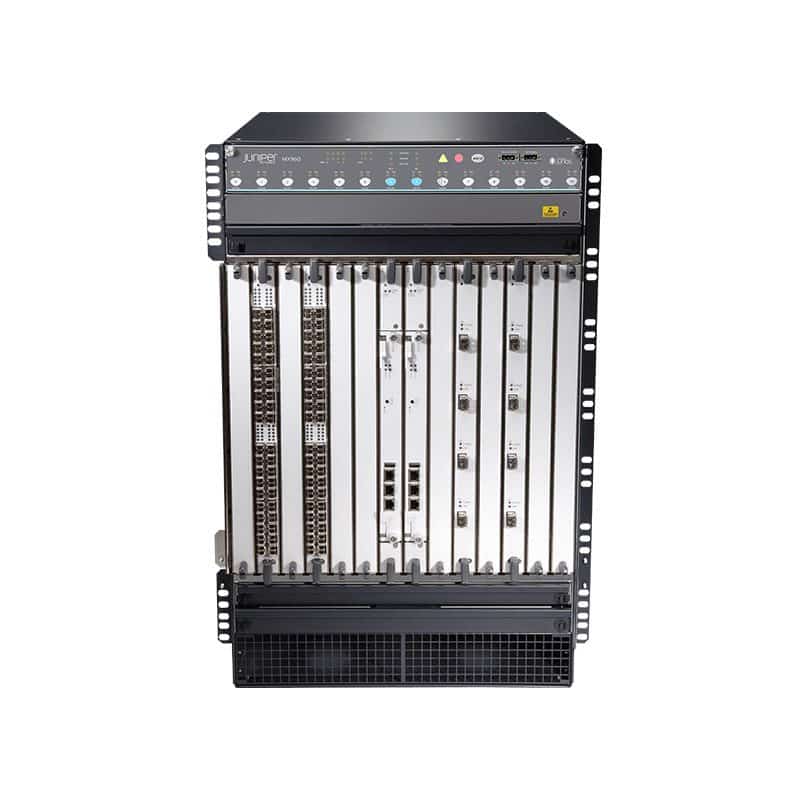

Juniper Networks MX-series MX960 Router Rack Mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX960
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Installed Devices / Modules Qty :4
Supported Devices / Modules Qty :14
Performance
Performance :Per-slot switching capacity: 1.5 Tbps, Switching capacity: 12 Tbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Routing Protocol :MPLS, GRE, BGP
Network / Transport Protocol :IPSec
Power Device
Type :Internal power supply
Power Redundancy :Yes
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :16
Compliant Standards :EMC, GR-1089-CORE, GR-63-CORE
Dimensions & Weight
Width :17.4 inch
Depth :27.8 inch
Height :23 inch
Weight :334.22 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :114.8 degree Fahrenheit
