Refurbished MX80-DC Technical Specifications

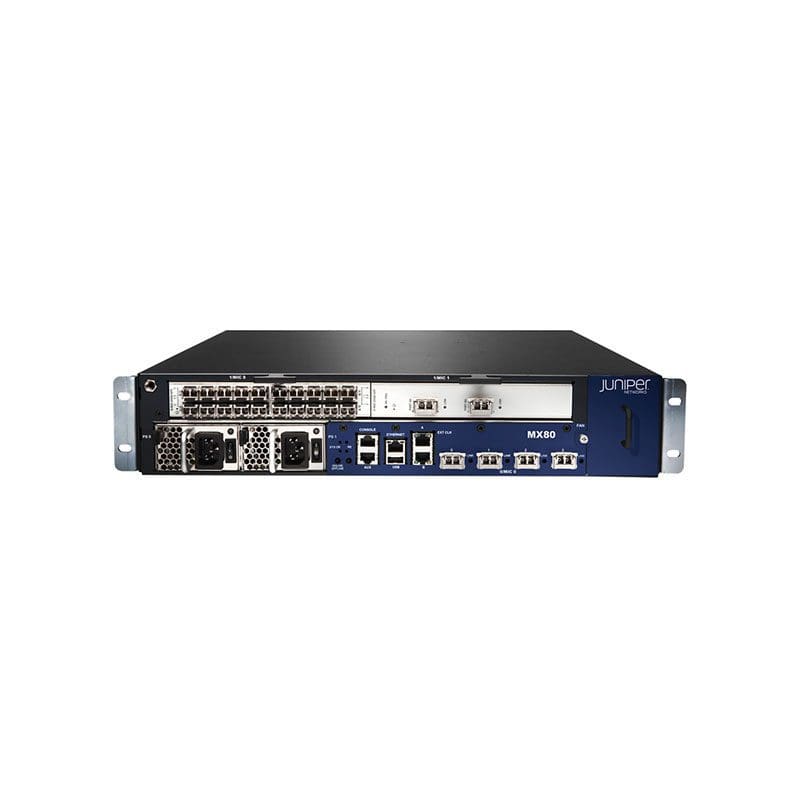

Juniper Networks MX-series MX80 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX80
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :2
Supported Devices / Modules Qty :2
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Routing Protocol :BGP, GRE
Remote Management Protocol :HTTP, SNMP 3, SNMP 2
Key Features :VPN support
Features :Quality of Service (QoS), High Availability, Manageable, VPN support, MPLS support
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Modular Interface Card (MIC), 4 (total) / 4 (free) x XFP
Power Device
Type :Internal power supply
Installed Qty :1
Max Supported Qty :2
Power Provided :500 watt
Nominal Voltage :DC -40 -72 V
Power Consumption Operational :320 watt
Miscellaneous
Height (Rack Units) :2
Compliant Standards :CSA C22.2 No. 60950-00, EN 61000-4-4, NEBS, VCCI Class A ITE, EN 61000-4-3, EN 60825-1, EN 60950, EMC, EN 61000-3-3, EN 61000-4-6, EN 61000-3-2, EN 61000-4-2, EN 61000-4-11, RoHS, EN 61000-4-5, UL 1950 Third Edition, EN55022 Class A, ETSI, AS/NZS 3548 Class A, FCC Part 15 A
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :3.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
