Refurbished MX480-PREMIUM2-AC Technical Specifications

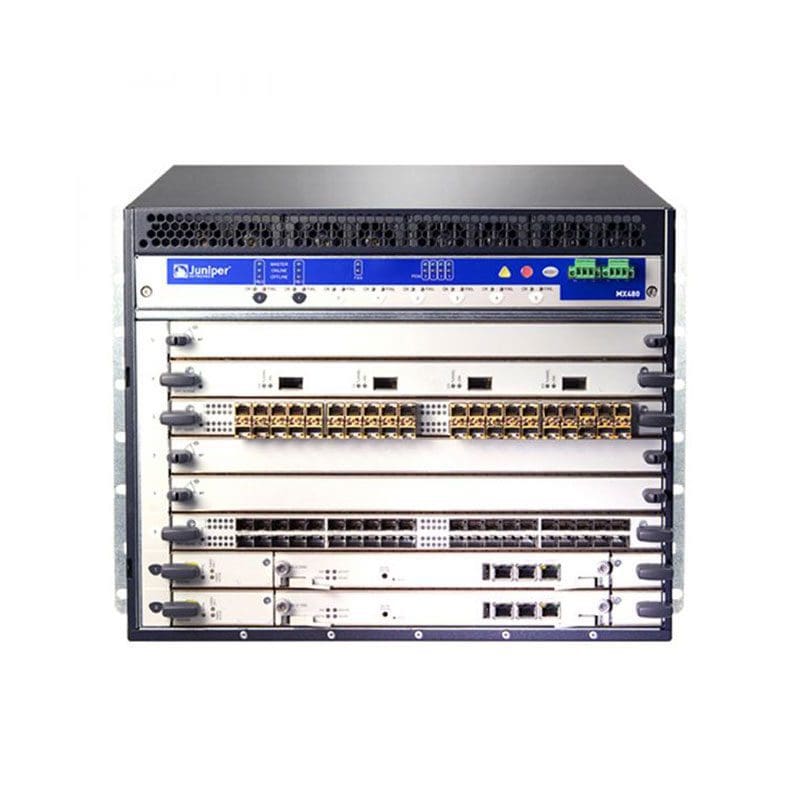

Juniper Networks MX-series MX480 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX480
Packaged Quantity :1
Chassis
Supported Devices / Modules Qty :8
Processor
Installed Qty :1
Clock Speed :2 GHZ
RAM
Installed Size :4 GB
Flash Memory
Installed Size :1 GB, 1 GB
Hard Drive
Capacity :40 GB
Modem
Type :None
Performance
Performance :Switching capacity: 1.4 Tbps, Throughput: 120 Gbps, Forwarding performance (large packets): 1.32 Bpps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Routing Protocol :BGP, GRE
Remote Management Protocol :SNMP 3, SNMP 2, HTTP
Status Indicators :Status
Key Features :VPN support
Features :Layer 3 switching, Midplane, VPN support, High Availability, Layer 2 switching, Modular design, Manageable, Quality of Service (QoS), MPLS Fast Reroute (FRR), MPLS support
Expansion Slots
Expansion Slots :8 expansion slot
Interface Provided
Interfaces :Management: 1 x console – RJ-45, 1 x auxiliary – RJ-45, 1 x 10Base-T/100Base-TX – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Yes
Max Supported Qty :4
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :8
Compliant Standards :EMC, CSA C22.2 No. 60950-00, EN 61000-4-5, EN 60950, AS/NZS 3548 Class A, EN 61000-3-2, EN 61000-4-6, EN 61000-4-4, RoHS, EN55022 Class A, EN 61000-4-3, EN 61000-4-11, EN 60825-1, EN 61000-4-2, UL 1950 Third Edition, VCCI Class A ITE, NEBS, ETSI, EN 61000-3-3, FCC Part 15 A
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
Weight :180.12 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
