Refurbished MX240-PREMIUM3-ACH Technical Specifications

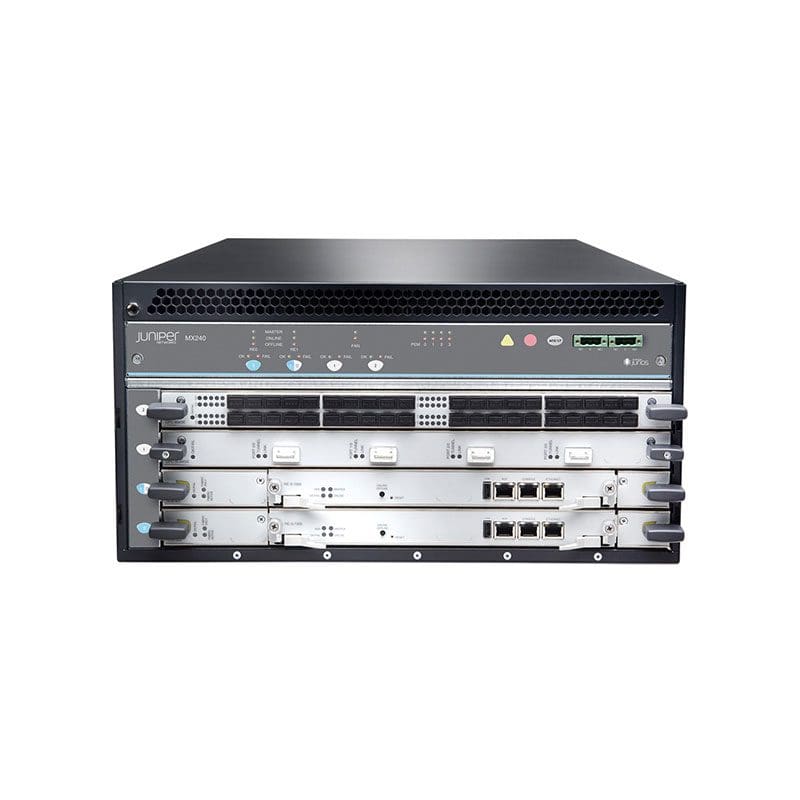

Juniper Networks MX-series MX240 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX240
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Supported Devices / Modules Qty :4
Performance
Performance :Switching capacity: 3 Tbps, Per-slot switching capacity: 1.5 Tbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Routing Protocol :MPLS, BGP, GRE
Status Indicators :Status
Features :Carrier Grade NAT (CGN/CGNAT), DWDM, Generic Routing Encapsulation (GRE), Network Virtualization using Generic Routing Encapsulation (NVGRE), DDoS Protection, MACsec support, Modular design, Virtual Private LAN Service (VPLS), Network Function Virtualization (NFV), Virtual Extensible LAN (VXLAN), Firewall protection, Layer 2 switching, MPLS LSR support, Hierarchical Quality of Service (HQoS), Precision Time Protocol (PTP), Distributed DoS (DDoS), Layer 3 switching, Side to side airflow
Compliant Standards :IEEE 802.1BR
Expansion Slots
Expansion Slots :4 (total) / 2 (free) x expansion slot
Power Device
Type :Internal power supply
Power Redundancy :Optional
Nominal Voltage :AC 220 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Black
Height (Rack Units) :5
Compliant Standards :GR-63-CORE, EMC, GR-1089-CORE
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Weight :130.07 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :114.8 degree Fahrenheit
Humidity Range Operating :5 – 90%
