Refurbished MX104-80G-DC-BNDL Technical Specifications

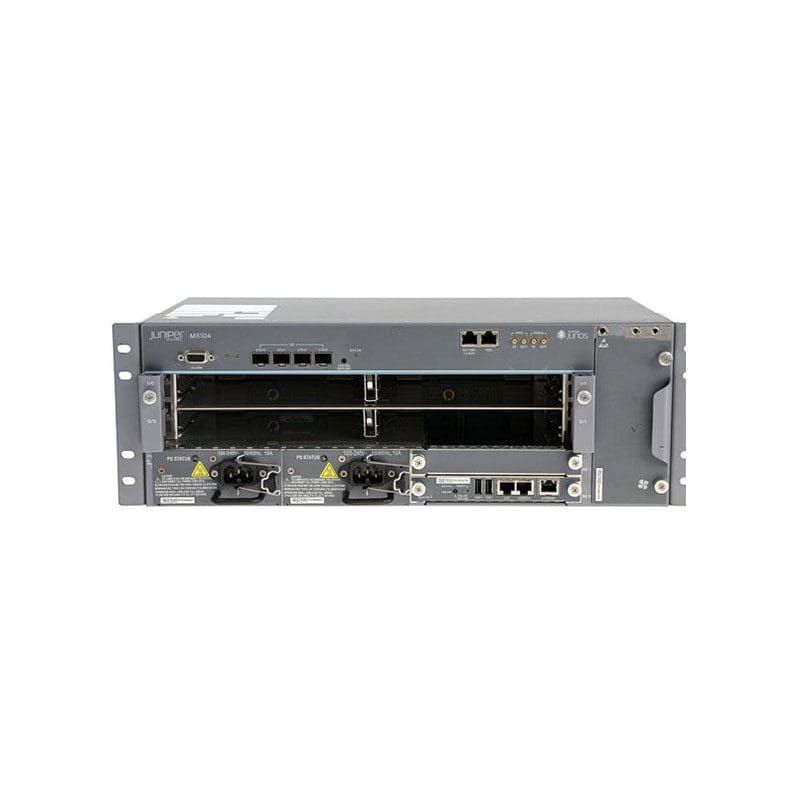

Juniper Networks MX-series MX104 Promotional Bundle router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX104 Promotional Bundle
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Installed Devices / Modules Qty :1
Supported Devices / Modules Qty :6
RAM
Technology :DDR3 SDRAM
Installed Size :4 GB
Performance
Performance :Scaling capacity: 80 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :TDM, PTP
Network / Transport Protocol :DHCP, IPSec
Remote Management Protocol :SNMP 2, SNMP 1, SNMP 3, CLI
Key Features :VPN support, USB port
Features :Fan tray, J-Flow, Quality of Service (QoS), NTP time synchronization, NAT support, VPN support, Non-Stop Routing (NSR), Side to side airflow
Compliant Standards :IEEE 1588-2008
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x Modular Interface Card (MIC), 2 (total) / 1 (free) x Services and Routing Engine (SRE)
Interface Provided
Interfaces :Management: 1 x console, USB: 2 x, Alarm: 4 x input, Alarm: 4 x output, Management: 1 x, 4 x 10Gb Ethernet – SFP+, Management: 1 x RS-232
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC 24/-48/-60 V
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :3.5
Compliant Standards :EN 60950-1, EMI, VCCI Class A, TUV, IEC 60950-1, EN55024:1998 + A1 + A2, EN 61000-4-2, EN 61000-4-4, ETSI 300 019, ETS 300 753, CCC, UL, EN 60825-1, NEBS level 3, NCC, FCC Part 15 A, IRAM, EN 61000-3-2, EN 61000-4-6, EN55022 Class B, EN 61000-4-3, CSA, EN 61000-4-5, S Mark, EN55024, EN 60950-1 Second Edition, GR-1089-CORE, UL 60950-1 Second Edition, EN55022 Class A, EN 61000-3-3, EN 300386, BSMI CNS 13438, GR-63-CORE, EN 61000-4-11, CAN/CSA C22.2 No. 60950-1, ITU-T K.20, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.5 inch
Height :6.1 inch
Weight :31.97 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :149 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
