MX0CD Technical Specifications

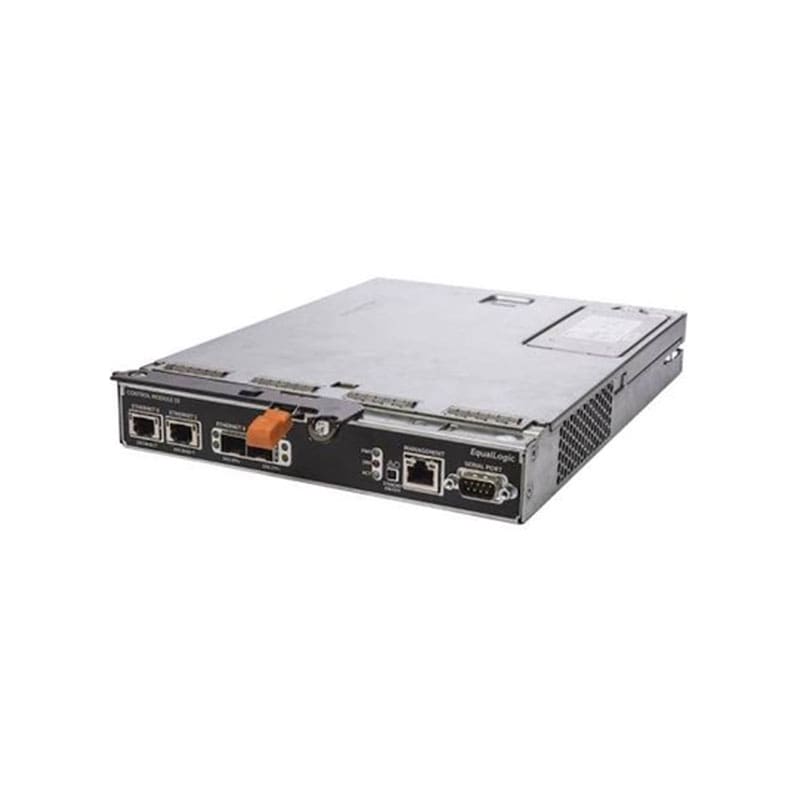

Dell Equallogic Type 15 Controller
Manufacturer: Dell
Type: Controller
Controller Type: SAS-SATA
Technical Specifications
Processor: Intel Xeon 64-bit, quad-core, 2.5GHz
Cache memory: 8GB non-volatile memory (NVRAM)
RAM: 16GB DDR3 SDRAM
Network interfaces: Four 1Gb Ethernet ports (RJ-45) per controller
Host interfaces: Two 10Gb Ethernet ports (SFP+) per controller
RAID support: RAID 5, RAID 6, RAID 10, and RAID 50
Maximum drives: 24 (using expansion module)
Expansion slot: One PCIe x8 slot per controller
Operating system: Dell EqualLogic firmware
