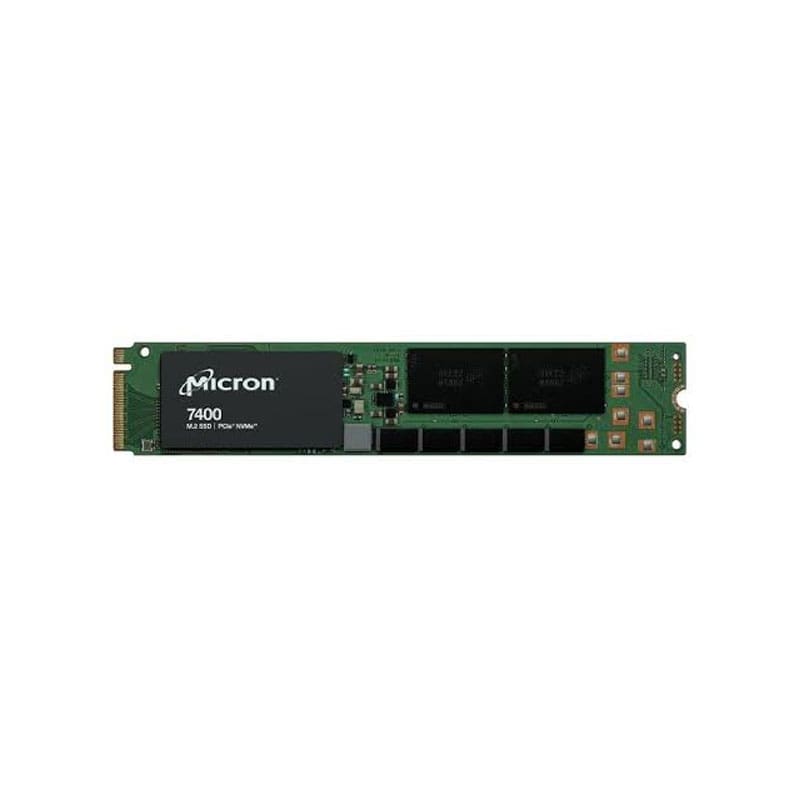

MTFDKBG3T8TDZ-1AZ1ZA Technical Specifications
Micron 3.84TB PCIe NVMe 4.0 M.2 22110 SSD
Manufacturer: Micron
Device Type: Solid State Drive
Interface: PCI-Express
Technical Information of 3.84TB Solid State Drive
Capacity: 3.84TB Storage Drive
Form Factor M.2 22x80mm
Wireless LAN: No
Product Series:7400
TAA Compliant: Yes
SSD Endurance 7008 TBW
Endurance Type: Read Intensive
Operating Temperature: 0°C to 70°C
Device Supported: Server Storage System
Advanced Features for Micron PCI-E SSD
Improved application storage performance
Up to 4000MB/s and 530MB/s writing speeds
2 million hours MTTF
The Micron MTFDKBG3T8TDZ-1AZ1ZA is a 3.84 Terabytes (TB) NVMe solid-state drive (SSD) that utilizes the NVMe (Non-Volatile Memory Express) protocol over a PCI-E interface, and TLC (triple-level cell) NAND flash memory technology. NVMe is a host controller interface and storage protocol that is specifically designed for high-performance SSDs. It allows for faster data transfer speeds and lower latency compared to traditional AHCI (Advanced Host Controller Interface) protocols.
Firmware Activate without Reset
Flex Capacity
Namespaces: 128
Power Loss Protection
Enterprise Data Path Protection
Secure Erase
Secure Boot
Hardware Root of Trust
Secure Signed Firmware
Performance of NVMe SSD
Endurance (DWPD): 1
Sequential Read 4400 MB/s
Sequential Write 2200 MB/s
4KB Random Read 650K IOPS
4KB Random Write 105K IOPS
Dimensions & Weight for
Height: 0.6 inch
Width: 2.7 inch
Depth: 3.9 inch
Weight: 0.35 lbs
