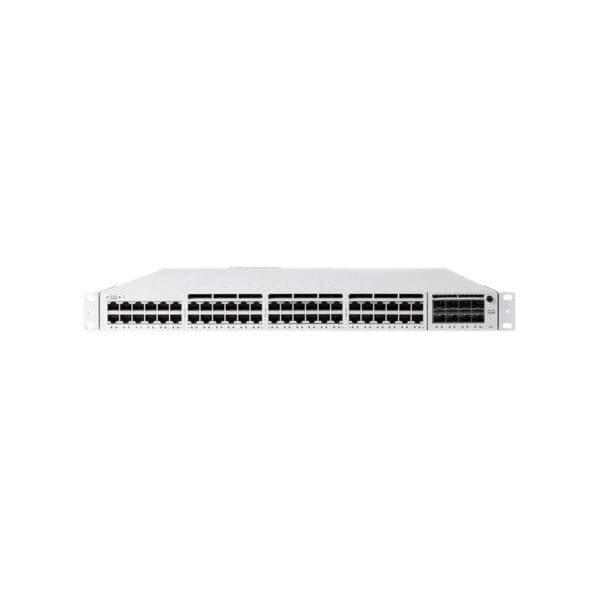

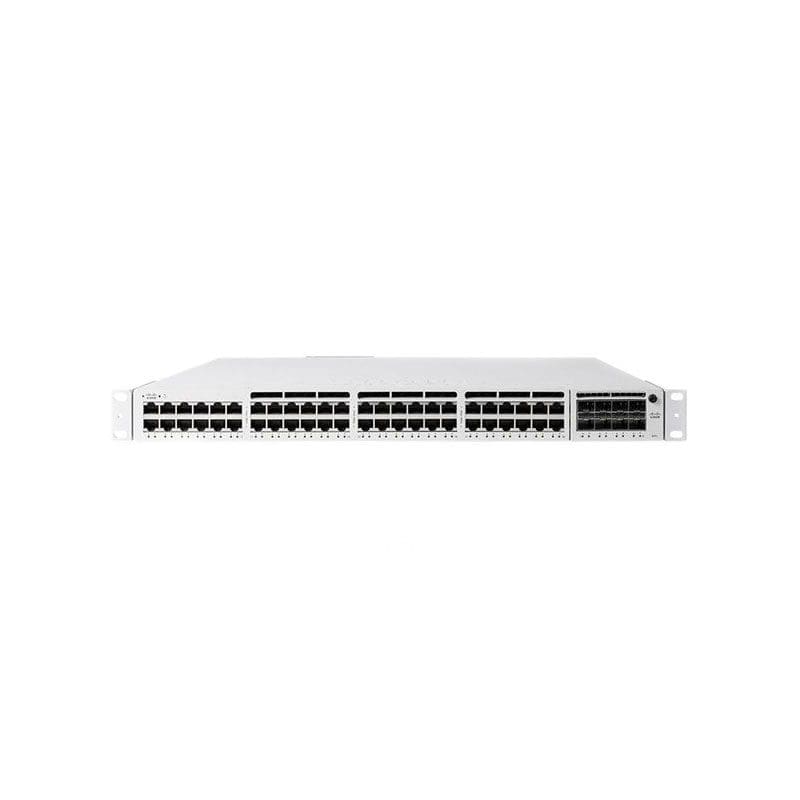

MS390-48-HW Technical Specifications
Meraki 48 Port Gbe Switch
Product Line: Meraki
Product Series: MS390
Interfaces/Ports
Total Number of Network Ports 48
Uplink Port Yes
Modular Yes
Stack Port Yes
Port/Expansion Slot Details 48 x Gigabit Ethernet Network, 2 x Stack, 1 x Expansion Slot
Media & Performance
Media Type Supported Twisted Pair, Optical Fiber
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 1
Expansion Slot Type I/O Module
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Power Description
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Miscellaneous
Package Contents
48-port Gbe Switch
1 x Power Supply (MA-PWR-350WAC)
Rack Mount Brackets and Screw Kit
3 x Pre-Installed Fans
