MS320-48LP-HW Technical Specifications

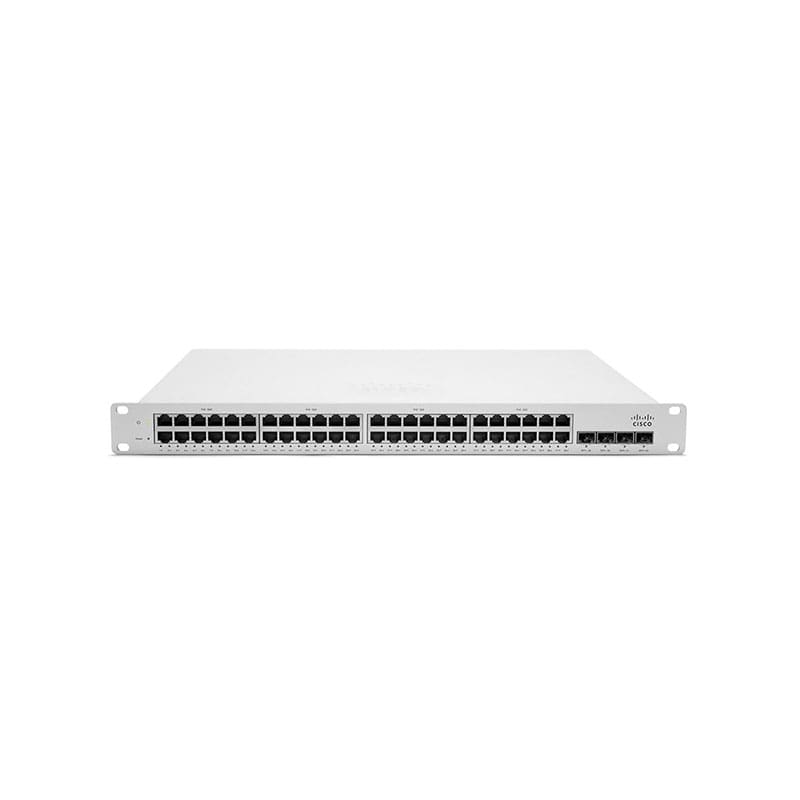

Cisco Meraki Cloud Managed MS320-48LP Switch 48 ports Managed Rack-Mountable
Brand: Cisco Meraki
Manufacture Part Number: MS320-48LP-HW
Product Line: Cisco Meraki Cloud Managed
Model: MS320-48LP
Manufacturer: Meraki
Network & Communication
Form Factor (Hubs & Switches): Rack-mountable
Manageable: Yes
PoE Budget: 370 watt
Ports: 48
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Remote Management: HTTP
Routing Protocol: Static IP routing
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Expansion Slots
Expansion Slots: 4 SFP+
Connectivity
Interface Provided: 48 x 1000Base-T RJ-45 PoE+ – 25.5 W
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports Type (2nd): SFP+
Power
Frequency: 50/60 hertz
Nominal Voltage: AC 120/230 V
Power Provided: 370 watt
Redundant Power Supply: Optional
Technical Information
Max Operating Temperature: 40 degree Celsius
Min Operating Temperature: 0 degree Celsius
Operating Humidity: 5 – 95% (non-condensing)
