MS125-48LP-HW Technical Specifications

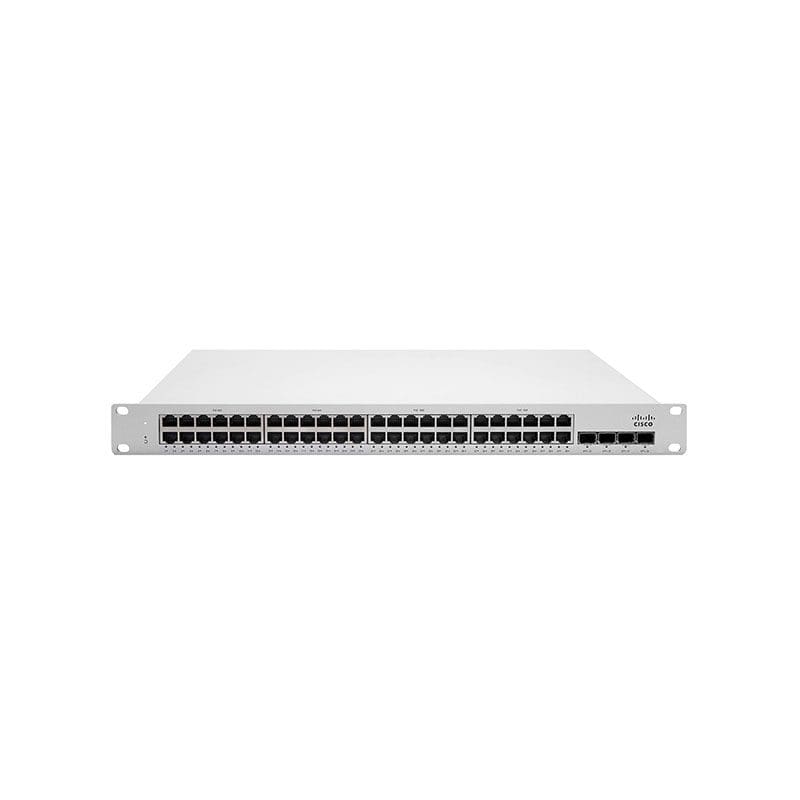

Cisco Meraki Cloud Managed MS125-48LP Switch 48 Port Managed
Capacity
Type :VLANs supported
Value :4094
Dimensions & Weight
Depth :9.8 in
Height :1.7 in
Weight :11.9 lbs
Width :17.3 in
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Manufacturer :CISCO DS HARDWARE DIRECT
Model :MS125-48LP
Packaged Quantity :1
Ethernet Technology: Gigabit Ethernet
Product Line :Cisco Meraki Cloud Managed
Product Series : MS125
Interface Provided
Connector Type :RJ-45
Qty :48 Port
Type :1000Base-T
Connector Type :SFP+
Qty :4 SFP+
Type :10Gbit LAN
Miscellaneous
Authentication Method :RADIUS
Color Category :White
Compliant Standards :CSA, FCC, IC, RCM, RoHS
Height (Rack Units) :1
MTBF :287,429 hours
Rack Mounting Kit :Included
