MR84-HW Technical Specifications

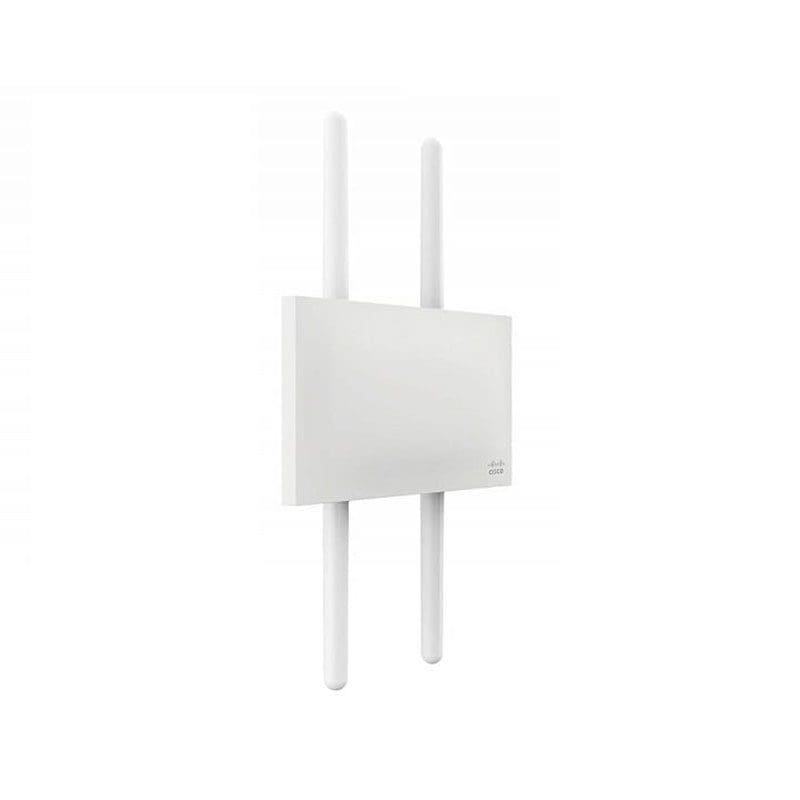

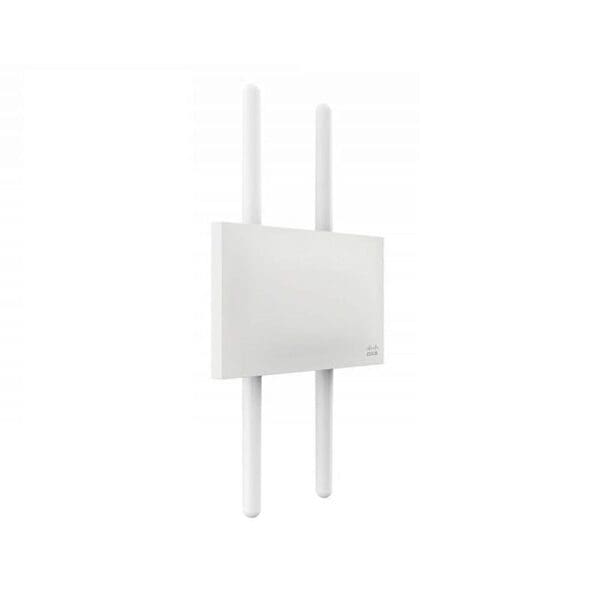

Cisco Meraki MR84 Cloud Managed – Wireless Access Point
Chassis
Ruggedized Design :Outdoor
Dimensions & Weight
Depth :6.9 in
Height :7.3 in
Weight :3.75 lbs
Width :11.3 in
Environmental Parameters
Max Operating Temperature :131 °F
Min Operating Temperature :-40 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Model :MR84 Cloud Managed
Packaged Quantity :1
Product Line :Cisco Meraki
Interface Provided
Connector Type :N connector
Qty :4
Type :Antenna
Connector Type :RJ-45
Qty :1
Type :1000Base-T (PoE+)
Ethernet Technology: Gigabit Ethernet
WAN DMZ :WAN
Type :2.5 GBase-T (PoE+)
Line Properties
Line Coding Format :256 QAM
Networking
Connectivity Technology :Wireless
Data Transfer Rate :2.5 Gbps
Form Factor :External
Network Transport Protocol :IPSec
Power Over Ethernet (PoE) :PoE+
Type :Wireless access point
Wi-Fi Bands :2.4 GHz, 5 GHz
