MR53-HW Technical Specifications

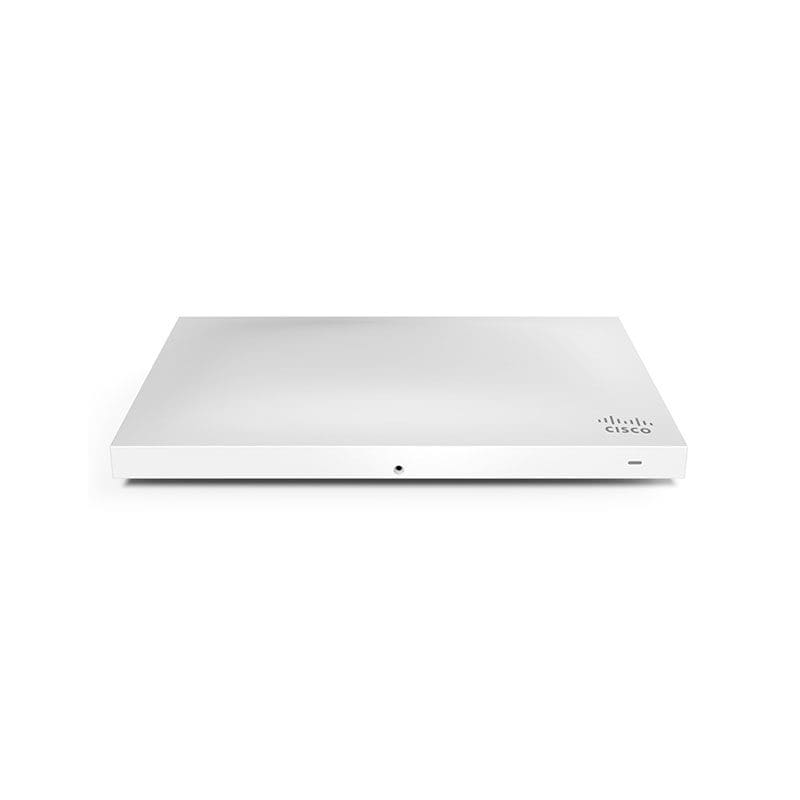

Cisco Meraki MR53 – Wireless Access Point
Antenna
Antenna Form Factor :Internal
Directivity :Omni-directional
Dimensions & Weight
Depth :6.4 in
Height :1.5 in
Weight :29.63 oz
Width :10.6 in
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Model :MR53
Packaged Quantity :1
Product Line :Cisco Meraki
Interface Provided
Connector Type :RJ-45
Qty :1
Type :1000Base-T (PoE)
Type :2.5 GBase-T (PoE+)
Networking
Connectivity Technology :Wireless
Data Transfer Rate :2.5 Gbps
Form Factor :External
Power Over Ethernet (PoE) :PoE
Type :Wireless access point
Wi-Fi Bands :2.4 GHz, 5 GHz
Wireless Protocol :802.11a/b/g/n/ac Wave 2
Power Device
Power Consumption Operational :21 Watt
