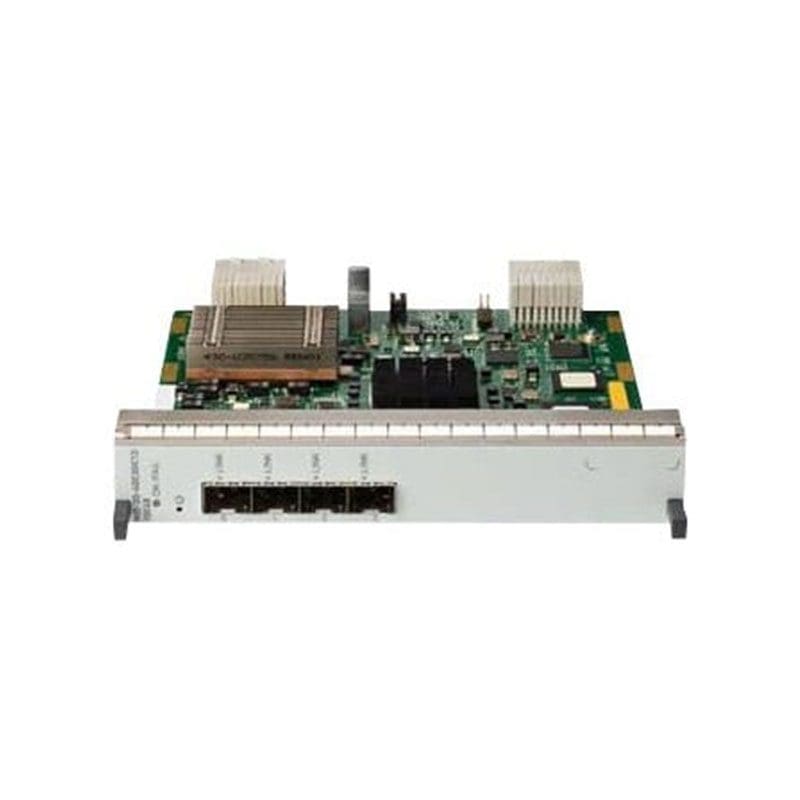

MIC-3D-4OC3OC12-1OC48 Technical Specifications
Juniper Networks Clear Channel Multiservice Interface MIC expansion module
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Clear-Channel
Model :Multiservice Interface MIC
Packaged Quantity :1
Line Properties
Line Rate :OC-48/STM-16
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :SONET/SDH
Features :MPLS support
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x SFP
Slot Required
Compatible Slots :1 x Modular Interface Card (MIC)
Power Device
Power Consumption Operational :23 watt
Miscellaneous
Compliant Standards :EN55022 Class A, EN 61000-4-4, UL 60950, VCCI Class A ITE, FCC Class A certified, BSMI Class A, AS/NZ 3548 Class A, EN 61000-3-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-2, EN 60825-1, EN 61000-4-11, EMI, EN 61000-3-2, EN 60825-2, EN 61000-4-3, EN 60950-1
