MG08ACA16TE Technical Specifications

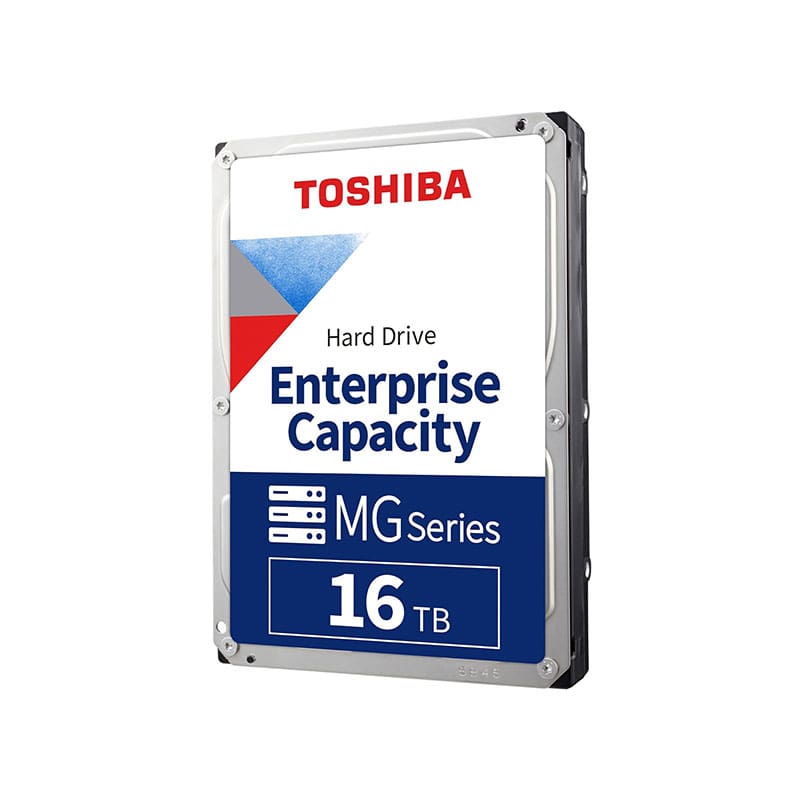

Toshiba MG08 Series – hard drive – 16 TB – SATA 6Gb/s
Brand Toshiba
Product Line Toshiba MG08 Series
Model MG08ACA16TE
Manufacturer Toshiba Hard Drives
Storage
Buffer Size 512 megabyte
Data Transfer Rate (Hard Drive) 600 MBps
Form Factor (Short) 3.5″
Form Factor (Short) (metric) 8.9 cm
Hard Drive Capacity 16 TB
Hard Drive Features
24×7 availability, Advanced format 512e, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, Persistent Write Cache technology, Power loss data protection
Hard Drive Type
Internal hard drive
HD Interface Serial ATA-600
Load/Unload Cycles 600,000
Non-Recoverable Errors 10 per 10^16
Spindle Speed (rpm)
7200 revolutions per minute
Storage Interface
Serial ATA-600
24×7 Operation
Yes
Connectivity
Interface Provided 1 x SATA 6 Gb/s
Technical Information
Compatible Bay 3.5″
Hard Drive Form Factor 3.5″
Hard Drive Form Factor (metric) 8.9 cm
Max Operating Temperature
131 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
41 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
2,500,000 Hours
Operating Humidity
5 – 90% (non-condensing)
Shock Acceleration (Non-operating) 250 gram
Shock Acceleration (Operating) 70 gram
Shock Duration (Non-operating) 2 ms
Shock Duration (Operating) 2 ms
Vibration Acceleration (Non-operating) 3 gram
Vibration Acceleration (Operating) 0.75 gram
Vibration Frequency Range (Non-operating) 5-500 Hz
Vibration Frequency Range (Operating) 5-300 Hz
Product Information
Packaged Quantity 1
Product Type Hard drive
Dimensions & Weight
Height 1 inch
Weight 25.39 ounce
Width 4 inch
Depth 5.8 inch
