MEM-5100-16G Technical Specifications

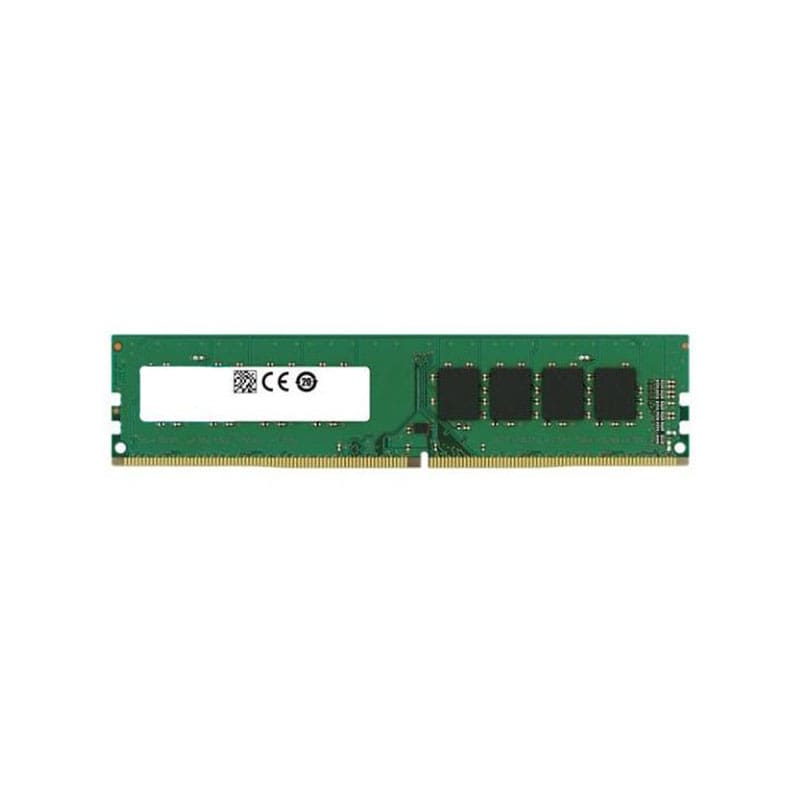

Cisco 16GB PC4-23466U-R DDR4-2933MHz ECC CL22 288-Pin RDIMM 1.2V Rank 1 x4 Memory Module
Product Name: 16G DDR4 DRAM DIMM for Cisco Encs 5100
Product Type: RAM Module
Memory Technology: DDR4 SDRAM
Memory Size: 16 GB
Form Factor: DIMM
Device Supported: Enterprise Network Compute System
Number of Pins: 288-pin
Number of Modules: 1 x 16GB
Cycle Time: 0.682ns
Cas: CL21
Rank: Rank 1
Voltage: 1.2
Error Correction: Registered ECC
Data Transfer Rate: 2933MHz
Weight: 0.1 lbs
Dimensions: 5.125 x 0.039 x 1.181 in
Height: STD
Rank: 4Rx4
