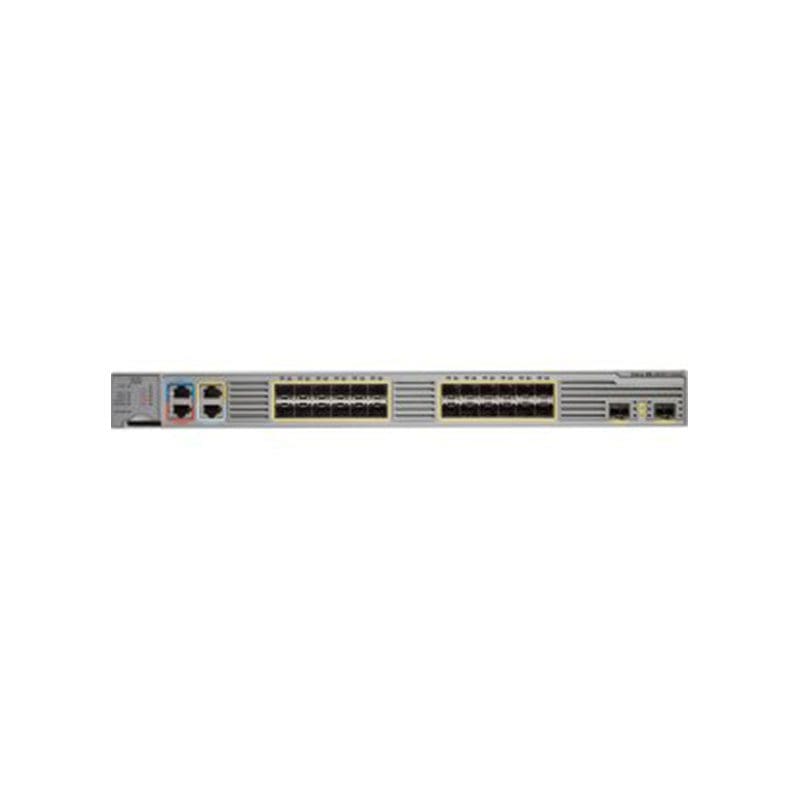

Refurbished ME-3800X-24FS-M Technical Specification
Cisco Ethernet Carrier Ethernet Switch
General
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x SFP + 2 x SFP+
Performance Bandwidth: 44 Gbps ¦ Forwarding performance: 65 Mpps
Remote Management Protocol SNMP 1, SNMP 2, SNMP 3
Authentication Method Secure Shell (SSH), TACACS+
Features Full duplex capability, layer 2 switching, ARP support, MPLS support, VLAN support, Syslog support, Class-Based Weighted Fair Queuing (CBWFQ), DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag
RAM 1 GB
Flash Memory 64 MB
Status Indicators Port status, power, system, alarm
Expansion / Connectivity
Interfaces 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management ¦ 2 x SFP+ ¦ 24 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Power
Power Device Internal power supply
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
