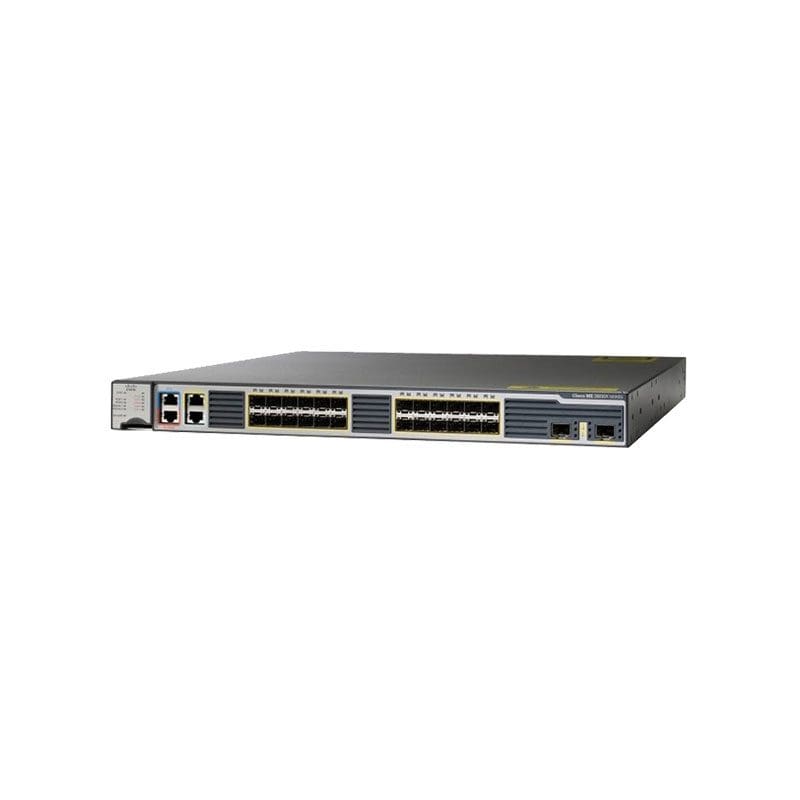

Refurbished ME-3600X-24CX-M Technical Specification
Cisco Spare Switch
General
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 2U
Subtype Gigabit Ethernet
Ports 8 x combo Gigabit SFP + 16 x SFP + 4 x XFP
Performance Bandwidth: 48 Gbps ¦ Forwarding performance: 65 Mpps
Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol SNMP 1, SNMP 2, SNMP 3
Features Full duplex capability, layer 2 switching, IGMP snooping, IPv6 support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag
RAM 2 GB
Flash Memory 128 MB
Status Indicators Port status, power, system, alarm
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 ¦ 1 x 1000Base-T RJ-45 management ¦ 24 x SFP (mini-GBIC) ¦ 4 x XFP ¦ 16 x T1/E1 – RJ-45 ¦ 4 x OC-3/STM-1 – LC x 2
Power
Power Device Internal power supply
Installed Qty 0 (installed) / 2 (max)
