MCX654105A-HCAT Technical Specifications

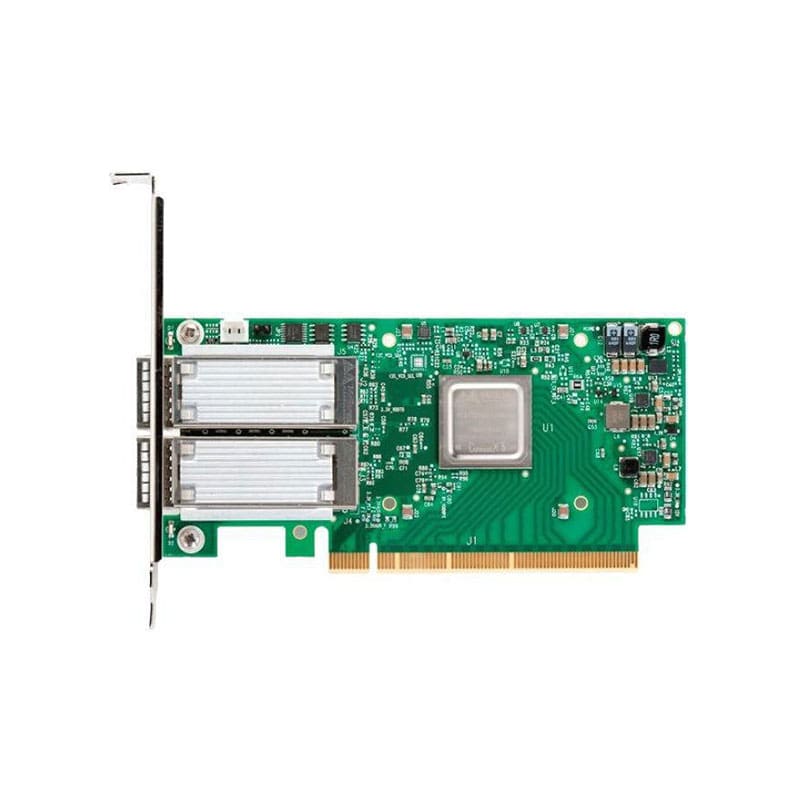

NVIDIA ConnectX-6 VPI Network Adapter 2 x PCI Express 3.0 x16 200Gb Ethernet / 200Gb Infiniband
Product Line: NVIDIA ConnectX-6 VPI
Model: MCX654105A-HCAT
Manufacturer: Nvidia Corp
Network & Communication
Connectivity Technology: Wired
Data Transfer Rate: 200 GBps
Form Factor: Plug-in card
Host Interface: 2 x PCI Express 3.0 x16
Network Standard: iSCSI, TCP/IP, UDP/IP
PCI Specification Revision: PCIe 3.0
Product Type: Network adapter
Connectivity
Interface Provided: 1 x 200Gb Ethernet / 200Gb Infiniband – QSFP28
Port Quantity: 1
Network & Adapter Ports: 200Gb Ethernet / 200Gb Infiniband QSFP28
Technical Information
Operating System Required: CentOS, FreeBSD, Microsoft Windows, Red Hat Enterprise Linux
Product Information
Packaged Quantity: 1
Physical Characteristics
Color Category: Green, Silver
Certifications & Listings
Compliant Standards: RoHS 6/6
