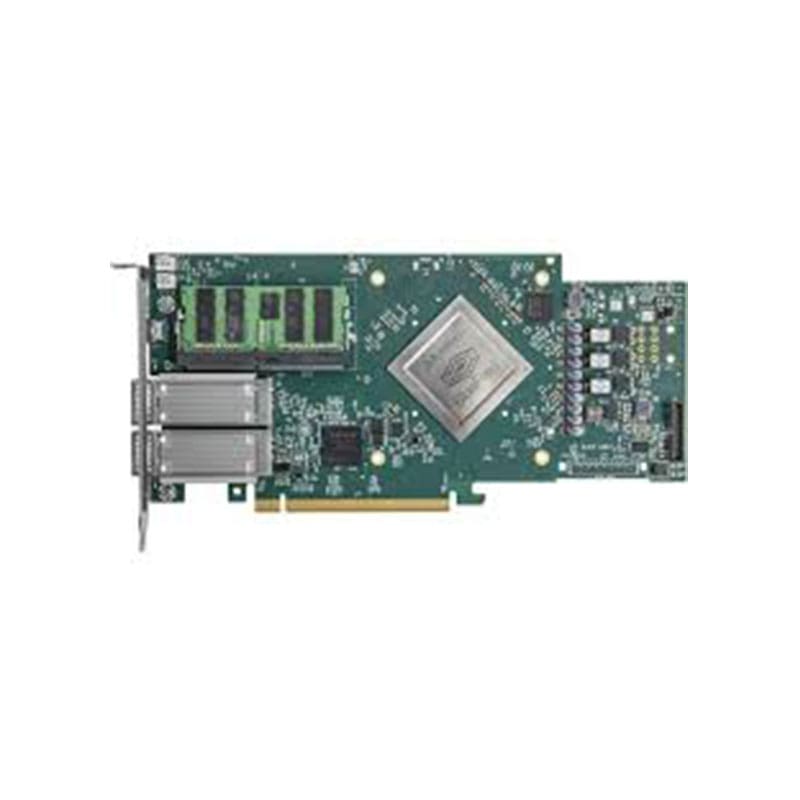

MBF1L516A-ESNAT Technical Specifications
Mellanox BlueField SmartNIC VPI Crypto Disabled Network
Manufacturer: MELLANOX TECHNOLOGIES INC
Brand: Mellanox
Product Line: Mellanox BlueField SmartNIC VPI
Model: MBF1L516A-ESNAT
Edition: Crypto disabled
Processor
Type: Cortex-A72
Installed Qty: 1
Manufacturer: ARM
Networking
Type: Network adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 4.0 x16
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Connectivity Technology: Wired
Data Link Protocol: 100 Gigabit Ethernet, 100 Gigabit InfiniBand
Network / Transport Protocol: TCP/IP, UDP/IP
Data Transfer Rate: 100 GBps
Ports
Qty: 2
Type: 100Gb Ethernet / Infiniband EDR QSFP28
Interface Provided
Interfaces: 2 x 100Gb Ethernet / 100Gb Infiniband – QSFP28
Miscellaneous
Color Category: Green, Silver
Encryption Algorithm: 224-bit SHA-2, 256-bit SHA, AES, DSA, ECDSA, RSA, SHA-1
Compliant Standards: RoHS 6/6
