Refurbished M7IE-AC-RE400-1GEB Technical Specifications

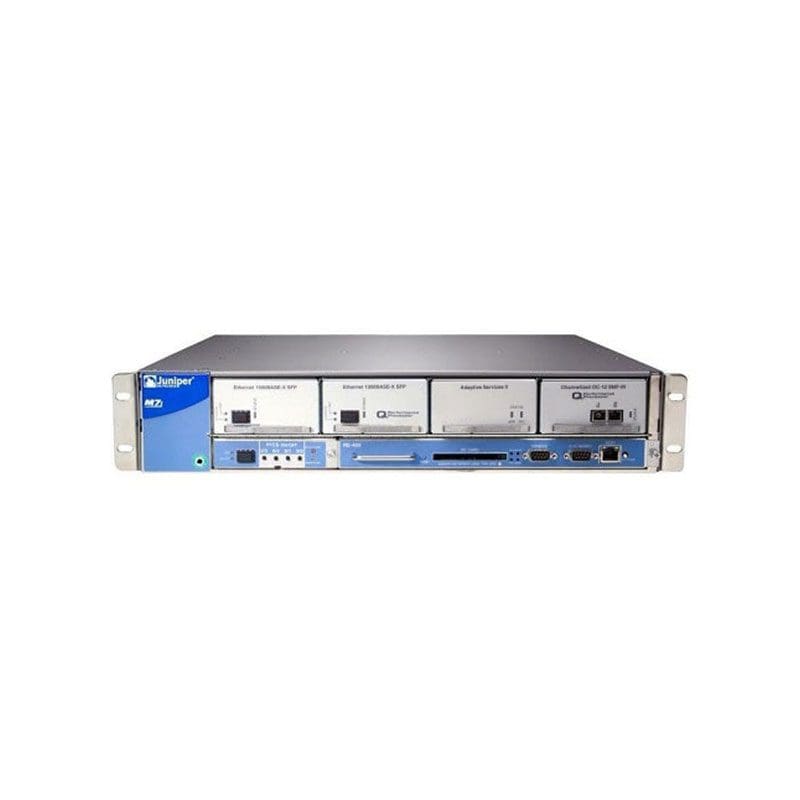

Juniper Networks M-series M7i router desktop
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks M-series
Model :M7i
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :4
Processor
Installed Qty :1
Clock Speed :400 megahertz
RAM
Installed Size :768 megabyte
Performance
Performance :Throughput: 10 Gbps
Networking
Type :Router
Form Factor :Desktop
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :PPP, Gigabit Ethernet, RS-232, RS-530, RS-449, V.35, ATM, HDLC, X.21, Frame Relay, MLPPP, FRF.15, FRF.16, Ethernet
Routing Protocol :Static IP routing, BGP, RIP-2, PIM-DM, PIM-SM, DVMRP, OSPF, IGMPv3, IS-IS, MPLS, PIM-SSM
Network / Transport Protocol :PPPoA, IPSec, RSVP, L2TP, TCP/IP
Remote Management Protocol :SNMP 3, HTTP, SNMP 2
Status Indicators :Alarm, Link/activity, Link OK, Fail
Key Features :Firewall, VPN support
Features :MPLS support, DHCP support, DDos attack prevention, DiffServ support, Layer 3 switching, Firmware upgradable, Layer 2 switching, IPv4 support, Midplane, VLAN support, DHCP relay, Traffic shaping, NAT support, Firewall protection, 168-bit encryption, Syslog support, 56-bit encryption, Modular design, DoS attack prevention, IPv6 support, Hot swap module replacement, VPN support, Packet filtering, High Availability
Compliant Standards :IEEE 802.1Q
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x PC Card, 4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x SFP (mini-GBIC), Management: 1 x 10Base-T/100Base-TX – RJ-45, Management: 2 x RS-232 – 9 pin D-Sub (DB-9)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Encryption Algorithm :DES, MD5, Triple DES, SHA-1
Authentication Method :RADIUS
Compliant Standards :EN 60950, IEC 825-1/EN 60825-1 class 1, EN 61000-4-6, EN 61000-4-4, EN 61000-3-2, CSA C22.2 No. 60950-00, EN 61000-4-3, EN 61000-4-5, EN 61000-4-2, EN 61000-4-11, VCCI Class B ITE, FCC Part 15 B, EN55022 Class B, AS/NZ 3548 Class B, UL 60950, BSMI
Dimensions & Weight
Width :17.5 inch
Depth :18 inch
Height :3.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
