M471A1K43DB1-CTD Technical Specifications

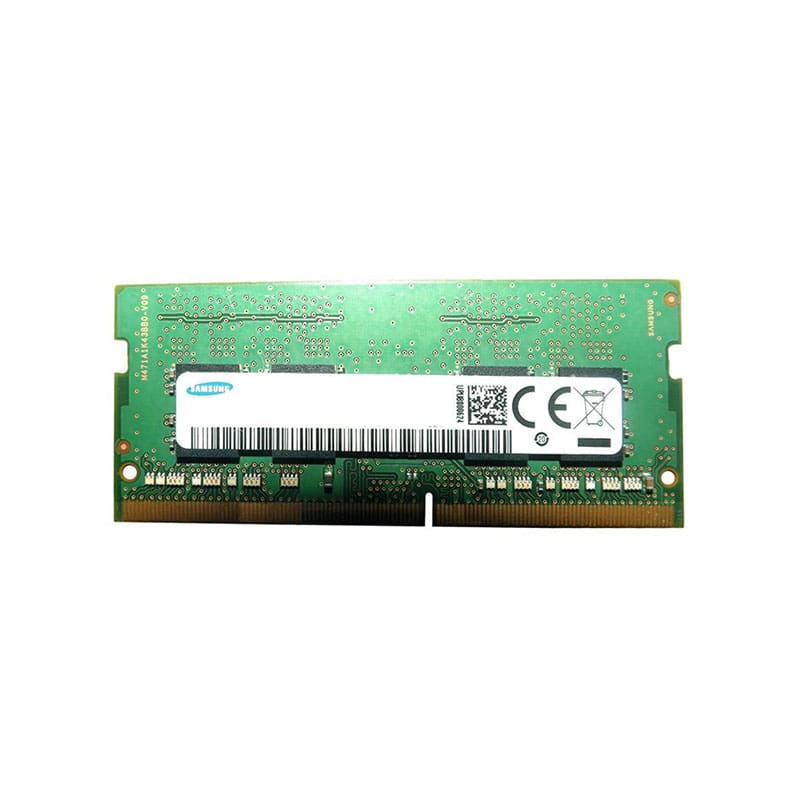

Samsung 8GB PC4-21300 DDR4-2666MHz non-ECC Unbuffered CL19 260-Pin SoDimm 1.2V Single Rank Memory Module
Technical Information
Memory Technology: 13692
RAM Speed: 2666 MHz
Error Identifying: Non-ECC
Signal Type: 13849
Supported Device: 3584
Memory Capacity: 8 GB
Product Voltage: 1.2V
RAM Standard: DDR4-2666/PC4-21300
Column Access Strobe (CAS): CL19
Rank: Single Rank x8
Quantity of Pins: 260-pin
RAM Genre: 13906
Quantity of Modules: 1 x 8 GB
Rank: Rank 1
Cycle Time: 0.75ns
Type Height: 30mm
Number of DRAM: 8
Standard: JEDEC
Number of Ranks: 1
