M393A1K43BB0-CRC Technical Specifications

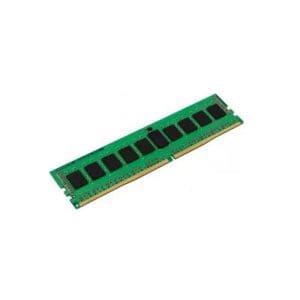

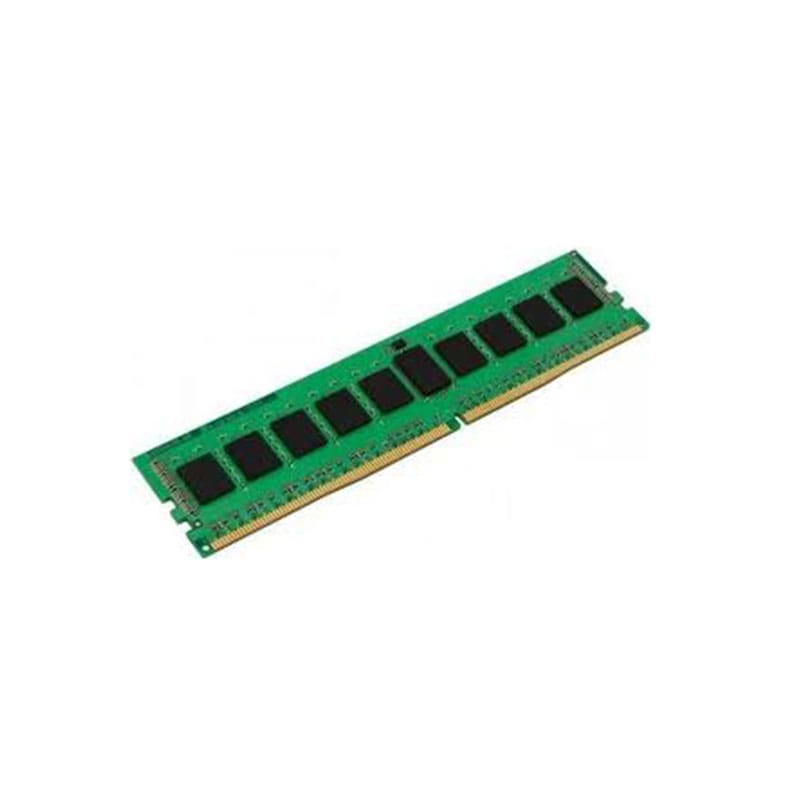

Samsung 8GB PC4-19200 DDR4-2400MHz Registered ECC CL17 288-Pin DIMM 1.2V Single Rank Memory Module
Manufacturer: Samsung
Capacity: 8GB
Name: PC4-19200R
Short Form: 8GB (1Rx8)
Type: 288Pin
Construction Type: DIMM
Model: RDIMM
Organization: 1Gx72
Description: DDR4 2400MHz
Number of Ranks: 1
Extension: registered
Error Correction: ECC
DRAM Organization: 1Gx8
Number of DRAM: 9
Construction Type of DRAM: FBGA(78ball)
Standard: JEDEC
Type Height: 31,25mm
Voltage: 1,2V
Rank: Rank 1
Cycle Time: 0.83ns
Cas: CL17
Weight: 0.1 lbs
Dimensions: 5.125 x 0.039 x 1.181 in
Form Factor: RDIMM
